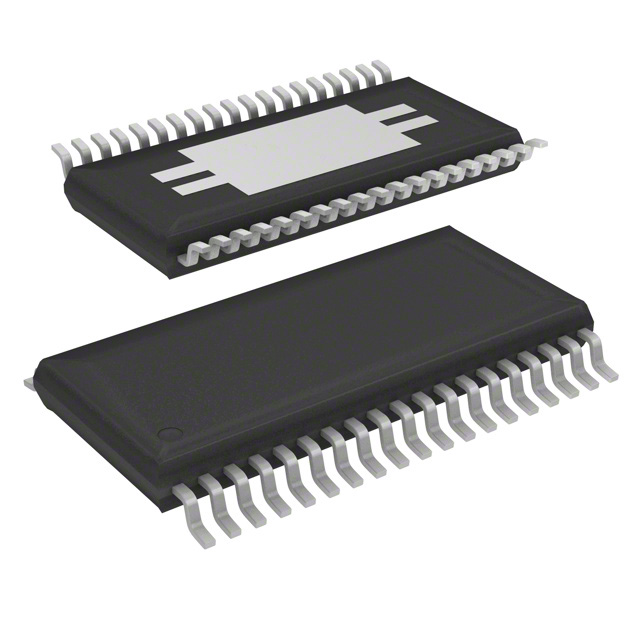

TAS3108IADCPR OverviewIn addition, the book comes with a case study as well. It is recommended that you mount it in a Surface Mount mounting type. Case 38-TFSOP (0.173, 4.40mm Width) Exposed Pad contains it. There are 4 channels on the device. The Audio Signal Processor functions in this part are included for your reference. There is a Automotive Audio, Consumer Audio version of the device. There is a supply of votage within 3V~3.6V days of ordering. With this device, you can operate the temperature within a range of -40°C~105°C TA. 38 terminations are present on the chip. By searching for TAS3108 family parts, similar parts can be found. 38 pins are available on the chip. As seen in the picture, Surface Mount is mounting it. Using this electrical component, we can represent the Automotive, AEC-Q100 series. The chip conducts when it is supplied with 3.3V-voltage. 3.3V is its maximum supply voltage. The total number of IC chips is 48. There are DIGITAL SIGNAL PROCESSOR, OTHER uPs/uCs/peripheral ICs in this device. The efficiency of this device can be improved when operating at a frequency of 135MHz.
TAS3108IADCPR FeaturesWith 38-TFSOP (0.173, 4.40mm Width) Exposed Pad channels
operate temperature at the range of -40°C~105°C TA
Supply voltage at 3.3V volts
with 48 bits
TAS3108IADCPR ApplicationsThere are a lot of Texas Instruments
TAS3108IADCPR Audio Special Purpose applications.
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
| Factory Lead Time | 6 Weeks |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 38-TFSOP (0.173, 4.40mm Width) Exposed Pad |
| Number of Pins | 38 |
| Weight | 130.010913mg |
| Operating Temperature | -40°C~105°C TA |
| Packaging | Tape & Reel (TR) |
| Series | Automotive, AEC-Q100 |
| JESD-609 Code | e4 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Number of Terminations | 38 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Applications | Automotive Audio, Consumer Audio |
| Voltage - Supply | 3V~3.6V |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 3.3V |
| Terminal Pitch | 0.5mm |
| Frequency | 135MHz |
| Base Part Number | TAS3108 |
| Function | Audio Signal Processor |
| Operating Supply Voltage | 3.3V |
| Number of Channels | 4 |
| Interface | I2C |
| RAM Size | 14kB |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
| Number of Bits | 48 |
| Data Bus Width | 32b |
| Boundary Scan | NO |
| Low Power Mode | YES |
| Format | FIXED POINT |
| Integrated Cache | NO |
| RAM (words) | 3072 |
| Barrel Shifter | NO |
| Internal Bus Architecture | MULTIPLE |
| Height | 1.2mm |
| Length | 9.7mm |
| Width | 4.4mm |
| Thickness | 1.15mm |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
| Mfr | Texas Instruments |
| Series | - |
| Product Status | Active |
| Applications | Audio |
| Interface | I²C |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Specifications | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 38-PowerTFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 38-HTSSOP |
TAS3108IADCPR Datasheet
