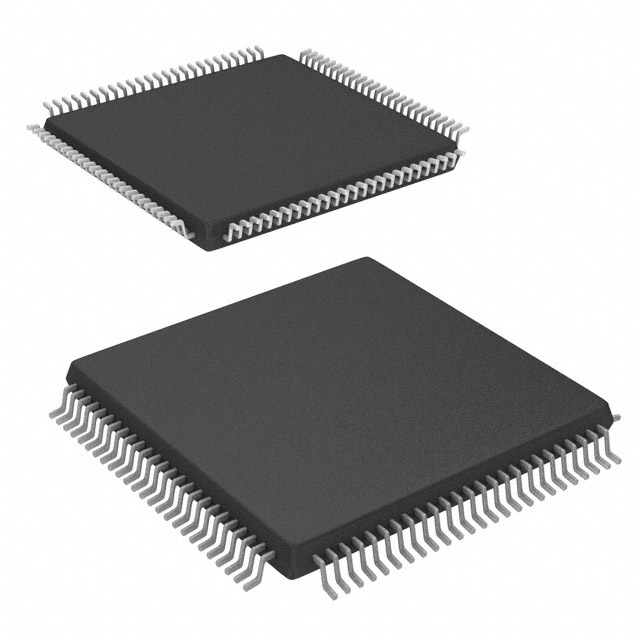

TAS3308PZT Overview
There is also an accompanying case included with this set. There is a recommendation that it should be mounted with a Surface Mount type mount. The file is embedded in a 100-TQFP case. This device has 2 channels. For your reference, here are some Audio Signal Processor functions. It can be used in Consumer Audio, Musical Instruments. There is a supply of votage within 3V~3.6V. 0°C~70°C TA is the temperature range for this device. A chip has 100 terminations. You can find similar parts by searching for the TAS3308 family. Chips have 100 pins that can be accessed. It is possible to sort parts based on their consumer IC type using CONSUMER CIRCUIT. It should not be possible to power this part with a voltage lower than 3V (Vsup). Voltage can be generated at 3.3V volts with this device. A maximum supply voltage (Vsup) is reached at 3.6V. In this case, Surface Mount mounts it. Using a 135MHz frequency, it can perform efficiently.
TAS3308PZT Features
With 100-TQFP channels
operate temperature at the range of 0°C~70°C TA
consumer IC type: CONSUMER CIRCUIT

TAS3308PZT Applications
There are a lot of Texas Instruments
TAS3308PZT Audio Special Purpose applications.

AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles

Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TQFP
Number of Pins	100
Operating Temperature	0°C~70°C TA
Packaging	Tray
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Termination	SMD/SMT
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Consumer Audio, Musical Instruments
Voltage - Supply	3V~3.6V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Frequency	135MHz
Base Part Number	TAS3308
Function	Audio Signal Processor
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Number of Channels	2
Interface	I2C
Consumer IC Type	CONSUMER CIRCUIT
Height	1.2mm
Length	14mm
Width	14mm
Thickness	1mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Interface	I²C
Voltage - Supply	3V ~ 3.6V
Operating Temperature	0°C ~ 70°C (TA)
Specifications	-
Supplier Device Package	100-TQFP (14x14)
