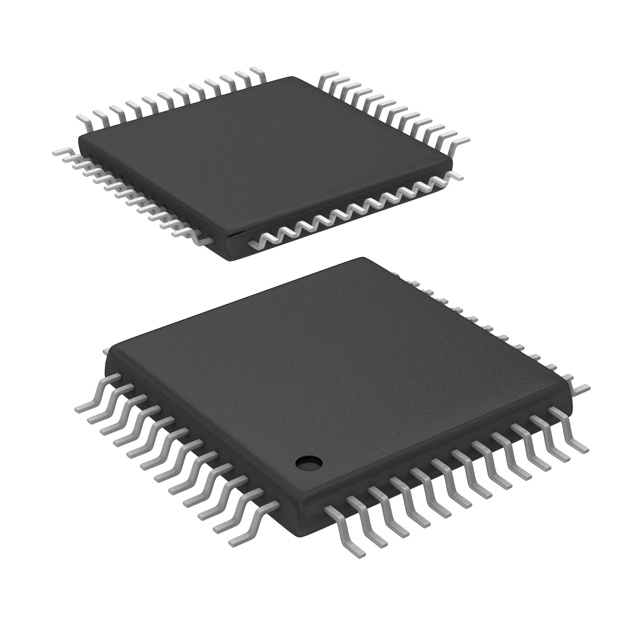

TAS5010IPFB OverviewIt comes in a case with Tray. It recommended mounting type is Surface Mount. It is embedded in 48-TQFP case. The device is with 2 channels. This part includes Audio Signal Processor functions for your reference. The device can be applied in Automotive Audio, Consumer Audio. It is supplied votage within 3V~3.6V. This device operates temperature at the range of -40°C~85°C TA. The number of terminations on the chip is 48. Similar parts can be found by searching for the TAS5010 family. Please refer to the related specifications of the device : 96dB. There are 48 pins accessible on the chip. CONSUMER CIRCUIT can be used to sort the part's consumer IC type. The chip conducts in a supply voltage of 3.6V.
TAS5010IPFB FeaturesWith 48-TQFP channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: CONSUMER CIRCUIT
TAS5010IPFB ApplicationsThere are a lot of Texas Instruments
TAS5010IPFB Audio Special Purpose applications.
Mobile computing
Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
| Mounting Type | Surface Mount |
| Package / Case | 48-TQFP |
| Surface Mount | YES |
| Number of Pins | 48 |
| Weight | 139.989945mg |
| Operating Temperature | -40°C~85°C TA |
| Packaging | Tray |
| JESD-609 Code | e4 |
| Pbfree Code | yes |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Number of Terminations | 48 |
| ECCN Code | EAR99 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Applications | Automotive Audio, Consumer Audio |
| Voltage - Supply | 3V~3.6V |
| Terminal Position | QUAD |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Terminal Pitch | 0.5mm |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Base Part Number | TAS5010 |
| Function | Audio Signal Processor |
| Qualification Status | Not Qualified |
| Output Type | PWM |
| Operating Supply Voltage | 3.6V |
| Number of Channels | 2 |
| Interface | DSP, I2S |
| Output Power | 59.4mW |
| Specifications | 96dB |
| Consumer IC Type | CONSUMER CIRCUIT |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 3V |
| Height | 1mm |
| Length | 7mm |
| Width | 7mm |
| REACH SVHC | No SVHC |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
| Mfr | Texas Instruments |
| Series | - |
| Product Status | Obsolete |
| Applications | Audio |
| Interface | DSP, I²S |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | Automotive |
| Supplier Device Package | 48-TQFP (7x7) |
