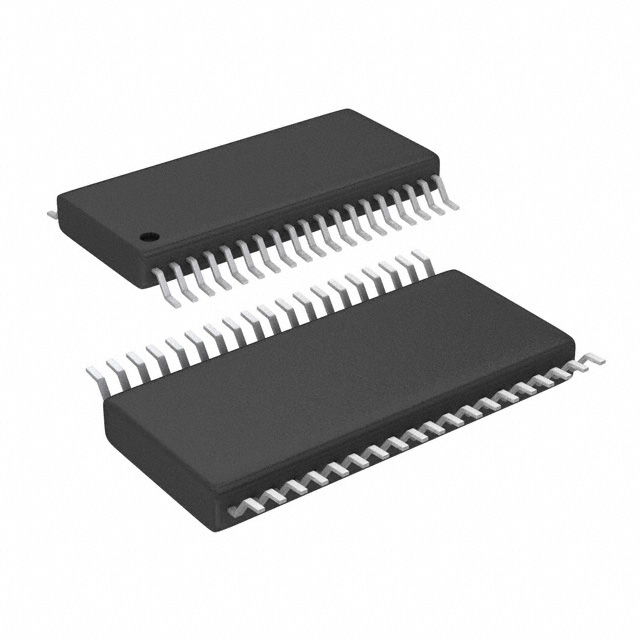

TAS5086DBTR Overview
With Tape & Reel (TR), it comes in a case. A Surface Mount mounting type is recommended for this product. In 38-TFSOP (0.173, 4.40mm Width) case, it is embedded. With 6 channels, the device is equipped. You can refer to Modulator functions in this part. Digital Audio Interfacing is one of the possible applications of the device. Votage within 3V~3.6V is supplied. The device operates at a temperature in the range 0°C~70°C TA. On the chip, there are 38 terminations. Using the TAS5086 family as a search term will yield similar parts. The following specifications apply to the device: 32kHz ~ 192kHz. On the chip, 38 pins are accessible. Consumer IC types can be sorted with CONSUMER CIRCUIT. PurePath Digital™-series components are used in this electrical component. In a 3.6V-volt supply voltage, the chip conducts.
TAS5086DBTR Features
With 38-TFSOP (0.173, 4.40mm Width) channels
operate temperature at the range of 0°C~70°C TA
consumer IC type: CONSUMER CIRCUIT

TAS5086DBTR Applications
There are a lot of Texas Instruments
TAS5086DBTR Audio Special Purpose applications.

Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers

Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	38-TFSOP (0.173, 4.40mm Width)
Surface Mount	YES
Number of Pins	38
Weight	120.003531mg
Operating Temperature	0°C~70°C TA
Packaging	Tape & Reel (TR)
Series	PurePath Digital™
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	38
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Digital Audio Interfacing
HTS Code	8542.39.00.01
Voltage - Supply	3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TAS5086
Function	Modulator
Qualification Status	Not Qualified
Output Type	PWM
Operating Supply Voltage	3.6V
Number of Channels	6
Interface	I2C, I2S
Output Power	817mW
Specifications	32kHz ~ 192kHz
Consumer IC Type	CONSUMER CIRCUIT
Max Supply Voltage (DC)	3.6V
Min Supply Voltage (DC)	3V
Height	1.2mm
Length	9.7mm
Width	4.4mm
Thickness	1mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Product Status	Active
Interface	I²C, I²S
Voltage - Supply	3V ~ 3.6V
Operating Temperature	0°C ~ 70°C (TA)
Package / Case	38-TFSOP (0.173", 4.40mm Width)
Supplier Device Package	38-TSSOP
