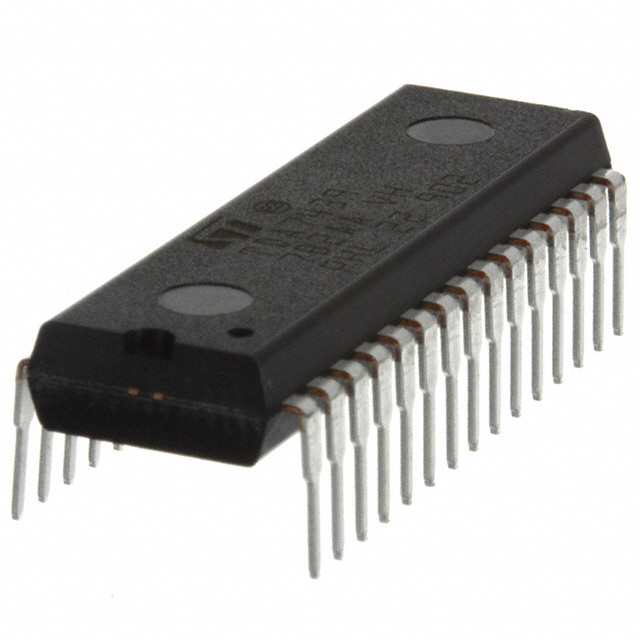

TDA7439 Overview
There is also an accompanying case included with this set. There is a recommendation that it should be mounted with a Through Hole type mount. The file is embedded in a 30-SDIP (0.400, 10.16mm) case. This device has 2 channels. For your reference, here are some Audio Tone Processor functions. It can be used in Automotive Audio, Consumer Audio. There is a supply of votage within 7V~10.2V. 0°C~70°C TA is the temperature range for this device. A chip has 30 terminations. You can find similar parts by searching for the TDA7439 family. Chips have 30 pins that can be accessed. It is possible to sort parts based on their consumer IC type using TONE CONTROL CIRCUIT. It should not be possible to power this part with a voltage lower than 6V (Vsup). Voltage can be generated at 9V volts with this device. In this case, Through Hole mounts it. A 3 band is present on it.
TDA7439 Features
With 30-SDIP (0.400, 10.16mm) channels
operate temperature at the range of 0°C~70°C TA
consumer IC type: TONE CONTROL CIRCUIT

TDA7439 Applications
There are a lot of STMicroelectronics
TDA7439 Audio Special Purpose applications.

AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles

Mount	Through Hole
Mounting Type	Through Hole
Package / Case	30-SDIP (0.400, 10.16mm)
Number of Pins	30
Operating Temperature	0°C~70°C TA
Packaging	Tube
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	30
ECCN Code	EAR99
Terminal Finish	MATTE TIN
Applications	Automotive Audio, Consumer Audio
Voltage - Supply	7V~10.2V
Terminal Position	DUAL
Terminal Pitch	1.778mm
Base Part Number	TDA7439
Function	Audio Tone Processor
Power Supplies	9V
Supply Voltage-Min (Vsup)	6V
Number of Channels	2
Interface	I2C
Nominal Supply Current	10mA
Consumer IC Type	TONE CONTROL CIRCUIT
Number of Bands	3
Harmonic Distortion	0.01%
Channel Separation	100 dB
Height	3.81mm
Length	27.94mm
Width	8.64mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Mfr	STMicroelectronics
Series	-
Product Status	Obsolete
Applications	Audio
Interface	I²C
Voltage - Supply	7V ~ 10.2V
Operating Temperature	0°C ~ 70°C (TA)
Specifications	-
Grade	Automotive
Package / Case	30-SDIP (0.400", 10.16mm)
Supplier Device Package	30-SDIP
