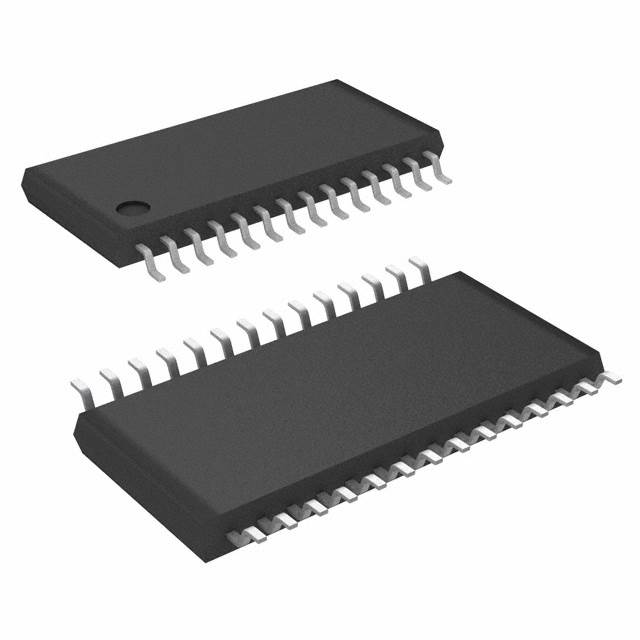

TDA7719TR Overview
With the book, you will also receive a case study. In terms of mounting type, the recommended type is Surface Mount. In this case, it is embedded in the 28-TSSOP (0.173, 4.40mm Width) case. This device has a 3 channel configuration. To assist you, this part includes Audio Signal Processor functions. It is possible to apply the device in the Automotive Audio axis. Votage will be supplied within the period of 7.5V~10V. In terms of temperature, this device works within a range of -40°C~85°C TA. The chip has 28 terminations. If you search for the TDA7719 family of parts, you will be able to find similar parts. On the chip, there are 28 pins that can be accessed. Sorting by TONE CONTROL CIRCUIT can be done based on what type of consumer IC the part contains. Vsup (supply voltage) should not be less than 7.5V when using this part. It can produce voltage at a voltage level of 8.5V volts. In this case, Vsup reaches its maximal value at 10V. Surface Mount is the one who mounts it. A Automotive, AEC-Q100 series electrical component is represented by this. This item has 3 bands.
TDA7719TR Features
With 28-TSSOP (0.173, 4.40mm Width) channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: TONE CONTROL CIRCUIT

TDA7719TR Applications
There are a lot of STMicroelectronics
TDA7719TR Audio Special Purpose applications.

Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors

Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Factory Lead Time	13 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173, 4.40mm Width)
Number of Pins	28
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	28
ECCN Code	EAR99
Applications	Automotive Audio
Voltage - Supply	7.5V~10V
Terminal Position	DUAL
Terminal Form	GULL WING
Terminal Pitch	0.65mm
Base Part Number	TDA7719
Function	Audio Signal Processor
Supply Voltage-Max (Vsup)	10V
Power Supplies	8.5V
Supply Voltage-Min (Vsup)	7.5V
Number of Channels	3
Interface	I2C
Consumer IC Type	TONE CONTROL CIRCUIT
Number of Bands	3
Channel Separation	90 dB
Length	9.7mm
Height Seated (Max)	1.2mm
Width	4.4mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Mfr	STMicroelectronics
Product Status	Active
Interface	I²C
Voltage - Supply	7.5V ~ 10V
Operating Temperature	-40°C ~ 85°C (TA)
Specifications	-
Package / Case	28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	28-TSSOP
