DescriptionTinySwitch™-II integrates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device. The start-up and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias winding and associated circuitry. In addition, the TinySwitch-II devices incorporate auto-restart, line undervoltage sense, and frequency jittering. An innovative design minimizes audio frequency components in the simple ON/OFF control scheme to practically eliminate audible noise with standard taped/varnished transformer construction.

Product HighlightsTinySwitch-II Features Reduce System Cost
• Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs
• Built-in circuitry practically eliminates audible noise with ordinary dip-varnished transformer
• Programmable line undervoltage detect feature prevents power on/off glitches – saves external components
• Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI filter component costs
• 132 kHz operation reduces transformer size – allows use of EF12.6 or EE13 cores for low cost and small size
• Very tight tolerances and negligible temperature variation on key parameters eases design and lowers cost
• Lowest component count switcher solution
• Expanded scalable device family for low system cost

Better Cost/Performance over RCC & Linears• Lower system cost than RCC, discrete PWM and other integrated/hybrid solutions
• Cost effective replacement for bulky regulated linears
• Simple ON/OFF control – no loop compensation needed
• No bias winding – simpler, lower cost transformer
• Simple design practically eliminates rework in manufacturing

EcoSmart™– Extremely Energy Efficient• No load consumption <50 mW with bias winding and <250 mW without bias winding at 265 VAC input
• Meets California Energy Commission (CEC), Energy Star, and EU requirements
• Ideal for cell-phone charger and PC standby applications

High Performance at Low Cost• High voltage powered – ideal for charger applications
• High bandwidth provides fast turn on with no overshoot
• Current limit operation rejects line frequency ripple
• Built-in current limit and thermal protection improves safety

Manufacturer	Power Integrations
Product Category	AC DC Converters, Offline Switchers
Series	TinySwitch®-II
Packaging	Tube
Tradename	TinySwitch

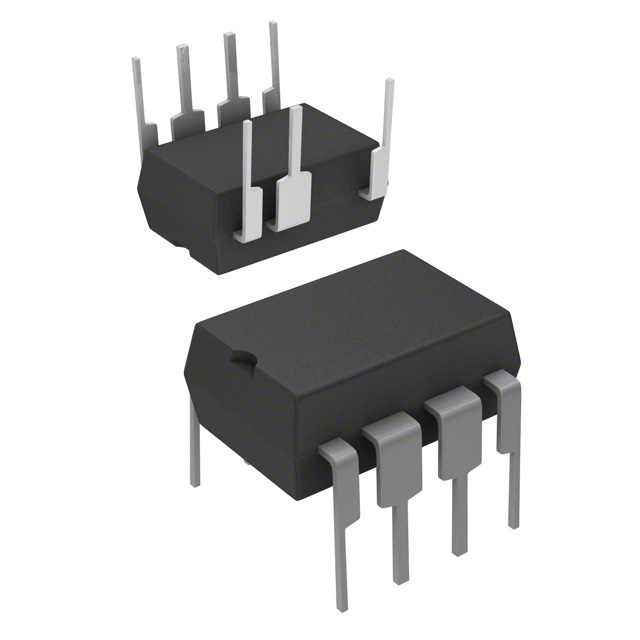

Package-Case	8-DIP (0.300", 7.62mm), 7 Leads
Operating-Temperature	-40°C ~ 150°C (TJ)
Mounting-Type	Through Hole
Supplier-Device-Package	DIP-8B
Watt	19W
Output-Isolation	Isolated
Internal-Switch-s	Yes
Voltage-Breakdown	700V
Topology	Flyback
Voltage-Start-Up	-
Voltage-Supply-Vcc-Vdd	-
Duty-Cycle	65%
Frequency-Switching	132kHz
Fault-Protection	Current Limiting, Open Loop, Over Temperature, Short Circuit
Control-Features	EN
