TS3A226AEYFFR Overview
Additionally, there is a case included with the book as well. The mounting type recommended by the manufacturer is Surface Mount. A 9-UFBGA, DSBGA case contains it. A 1 channel is present on the device. For your reference, this part contains Audio Switch functions. Consumer Audio can be used with the device. We supply it within 2.6V~4.5V. Using -40°C~85°C TA as a temperature range, this device operates. It has 9 terminations. A search for parts belonging to the TS3A226 family will yield similar results. Refer to the device's specifications: FM. An accessible 9 pin can be found on the chip. A voltage of 3.3V volts can be given by it. The mount is made by Surface Mount. This device can handle a voltage of 3.3V as a supply voltage. It uses an analog IC called AUDIO/VIDEO SWITCH. Data transfers are limited to 200MHz bandwidths. It is possible to categorize supplies based on Single. A device's resistance should be within the range of 10.5Ohm.
TS3A226AEYFFR Features
With 9-UFBGA, DSBGA channels
operate temperature at the range of -40°C~85°C TA
Supply voltage at 3.3V volts
supply type: Single
stay resistance at 10.5Ohm

TS3A226AEYFFR Applications
There are a lot of Texas Instruments
TS3A226AEYFFR Audio Special Purpose applications.

Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers

Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount

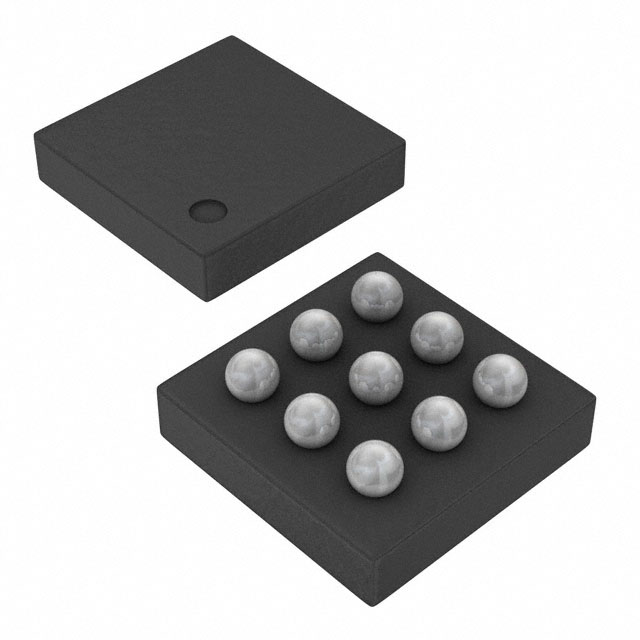

Package / Case	9-UFBGA, DSBGA
Number of Pins	9
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e1
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	9
Resistance	10.5Ohm
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Applications	Consumer Audio
Voltage - Supply	2.6V~4.5V
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	3.3V
Base Part Number	TS3A226
Output	SEPARATE OUTPUT
Function	Audio Switch
Power Supplies	3.3V
Number of Channels	1
Analog IC - Other Type	AUDIO/VIDEO SWITCH
Max Supply Current	14μA
Input Voltage (Min)	2.6V
Number of Inputs	4
Supply Type	Single
Bandwidth	200MHz
Specifications	FM
Off-state Isolation-Nom	-80 dB
Normal Position	NO
Height	625μm
Length	1.4mm
Width	1.4mm
Thickness	425μm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Interface	-
Voltage - Supply	2.6V ~ 4.5V
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	9-DSBGA
