UCC38083D Texas Instruments

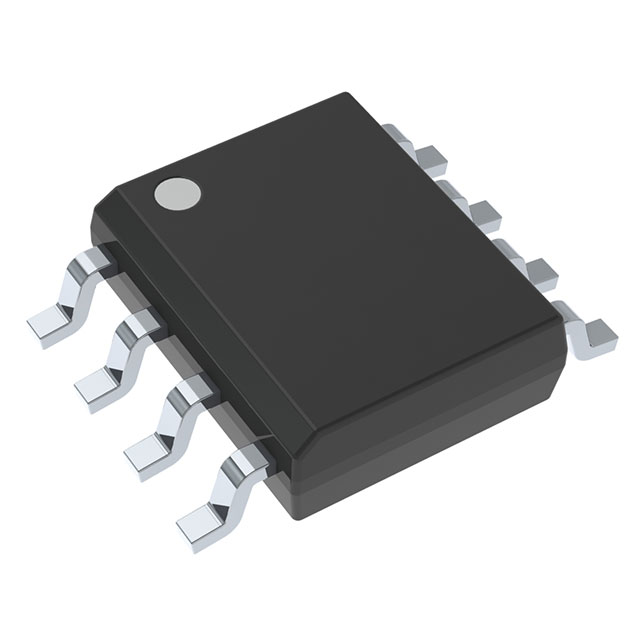

The picture is for reference only, please refer to the product specification
UCC38083D Texas Instruments
    Part Number：KY-UCC38083D
    Mfr. Part No：UCC38083D
    Mfr.：Texas Instruments
    Stock：6453
    Description：Lead Free SWITCHING CONTROLLER Isolated PULSE WIDTH MODULATION Converter Offline 25ns 0C~70C TA 100mA 50kHz~1MHz
    Data Sheet：UCC38083D Datasheet
Add to cart
In Stock: 6453
    －+
  • *
  • Please send your requirements to E-mail：sales@kywos.com,we will reply you as soon as possible
    • Inquiry
  • Products Details
    • ManufacturerTexas Instruments
    Product CategoryAC DC Converters, Offline Switchers
    SeriesUCC38083
    PackagingTube Alternate Packaging
    Unit-Weight0.002561 oz
    Mounting-StyleSMD/SMT
    Package-Case8-SOIC (0.154", 3.90mm Width)
    Operating-Temperature0°C ~ 70°C (TA)
    Mounting-Type*
    Supplier-Device-Package8-SOIC
    Watt-
    Number-of-Outputs2 Output
    Output-IsolationIsolated
    Internal-Switch-sNo
    Voltage-Breakdown-
    TopologyPush-Pull
    Voltage-Start-Up12.5V
    Voltage-Supply-Vcc-Vdd8.3 V ~ 15 V
    Duty-Cycle49%
    Frequency-Switching50kHz ~ 1MHz
    Fault-ProtectionCurrent Limiting
    Control-FeaturesFrequency Control
    Maximum Operating Temperature+ 70 C
    Operating temperature range0 C
    Output-Current1000 mA
    Switching-Frequency1000 kHz
    Fall-Time25 ns
    Rise-Time25 ns
    Package-CaseSOIC-8
    Duty-Cycle-Max50 %
