Description The device is an off-line converter with an 800 V avalanche ruggedness power section, a PWM
controller, user defined overcurrent limit, protection against feedback network disconnection, hysteretic thermal protection, soft start up and safe auto restart after any fault condition.

Features ■ 800 V avalanche rugged power section
■ PWM operation with frequency jittering for low EMI
■ Operating frequency:
– 60 kHz for L type
– 115 kHz for H type
■ Standby power < 50 mW at 265 VAC
■ Limiting current with adjustable set point
■ On-board soft-start
■ Safe auto-restart after a fault condition
■ Hysteretic thermal shutdown

Application ■ Auxiliary power supply for appliances
■ Power metering
■ LED drivers
■ SMPS for set-top boxes, DVD players and recorders

Manufacturer	STMicroelectronics
Product Category	AC DC Converters, Offline Switchers
Series	VIPer™ plus
Product	Voltage Converter
Type	Zero-Power Off-Line High Voltage Converter
Packaging	Alternate Packaging
Unit-Weight	0.007079 oz
Mounting-Style	SMD/SMT
Operating-Temperature-Range	- 40 C to + 150 C

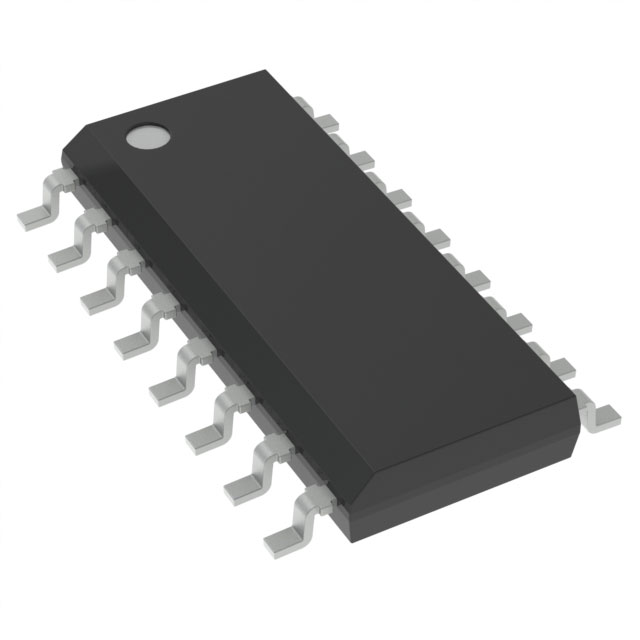

Package-Case	16-SOIC (0.154", 3.90mm Width)
Operating-Temperature	-40°C ~ 150°C (TJ)
Mounting-Type	Surface Mount
Supplier-Device-Package	16-SO
Watt	12W
Number-of-Outputs	1 Output
Output-Isolation	Either
Internal-Switch-s	Yes
Voltage-Breakdown	800V
Topology	Buck, Buck-Boost, Flyback
Voltage-Start-Up	8V
Voltage-Supply-Vcc-Vdd	4.5 V ~ 30 V
Duty-Cycle	80%
Frequency-Switching	60kHz
Fault-Protection	Current Limiting, Over Load, Over Temperature, Short Circuit
Control-Features	-
Isolation	Non-Isolated
Maximum Operating Temperature	+ 150 C
Switching-Frequency	60 kHz
Package-Case	SO-16
Duty-Cycle-Max	80 %
Input-Supply-Voltage-Min	4.5 V
Input-Supply-Voltage-Max	30 V
