DESCRIPTION The VIPer53 combines in the same package an enhanced current mode PWM controller with a high voltage MDMesh Power Mosfet. Typical applications cover off line power supplies with a secondary power capability ranging up to 30W in wide range input voltage or 50W in single European voltage range and DIP-8 package, with the following benefits:

– Overload and short circuit controlled by feedback monitoring and delayed device reset.
– Efficient standby mode by enhanced pulse skipping.
– Primary regulation or secondary loop failure protection through high gain error amplifier.

FEATURES SWITCHING FREQUENCY UP TO 300 kHz
CURRENT LIMITATION
CURRENT MODE CONTROL WITH ADJUSTABLE LIMITATION
SOFT START AND SHUT DOWN CONTROL
AUTOMATIC BURST MODE IN STAND-BY CONDITION (“BLUE ANGEL” COMPLIANT)
UNDERVOLTAGE LOCKOUT WITH HYSTERESIS
HIGH VOLTAGE STARTUP CURRENT SOURCE
OVERTEMPERATURE PROTECTION
OVERLOAD AND SHORT-CIRCUIT CONTROL

Manufacturer	STMicroelectronics
Product Category	AC DC Converters, Offline Switchers
Series	VIPer™ plus
Product	Voltage Controllers
Type	High Voltage Converter
Packaging	Tube
Mounting-Style	Through Hole
Operating-Temperature-Range	- 40 C to + 150 C

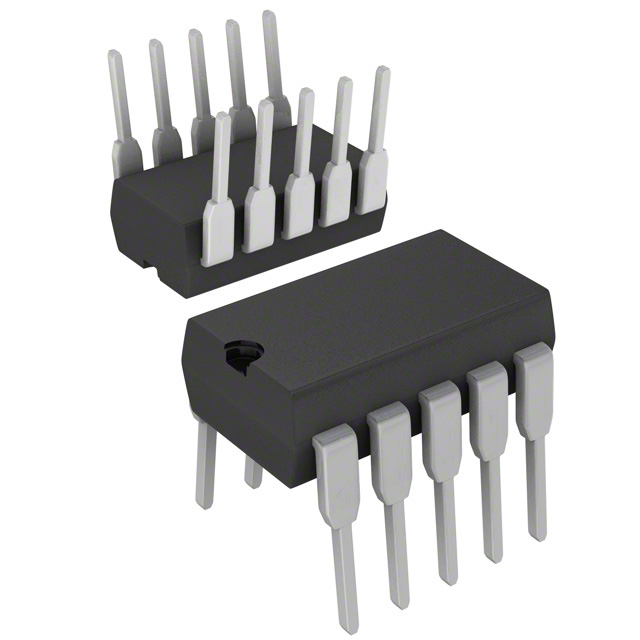

Package-Case	10-SDIP (0.300", 7.62mm)
Operating-Temperature	-40°C ~ 150°C (TJ)
Mounting-Type	Through Hole
Supplier-Device-Package	10-SDIP
Watt	20W
Number-of-Outputs	1 Output
Output-Isolation	Isolated
Internal-Switch-s	Yes
Voltage-Breakdown	800V
Topology	Flyback
Voltage-Start-Up	14V
Voltage-Supply-Vcc-Vdd	8.5 V ~ 23.5 V
Duty-Cycle	80% Max
Frequency-Switching	115kHz
Fault-Protection	Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control-Features	-
Isolation	Non-Isolated
Output-Power	20 W
Operating-Supply-Current	3.5 mA
Switching-Frequency	115 kHz
Package-Case	SDIP-10
Duty-Cycle-Max	80 %
Input-Supply-Voltage-Min	8.5 V
Input-Supply-Voltage-Max	23.5 V
