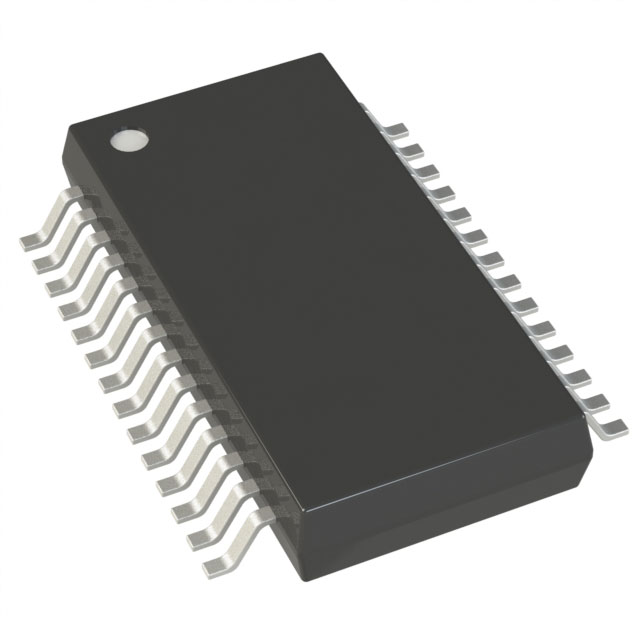

AD1895AYRSZ Overview
There is also an accompanying case included with this set. There is a recommendation that it should be mounted with a Surface Mount type mount. The file is embedded in a 28-SSOP (0.209, 5.30mm Width) case. This device has 2 channels. For your reference, here are some Sample Rate Converter functions. It can be used in Digital Audio Interfacing. There is a supply of votage within 3.3V 5V. -40°C~105°C TA is the temperature range for this device. A chip has 28 terminations. You can find similar parts by searching for the AD1895 family. Refer to the following specifications for the device: 6kHz ~ 215kHz. Chips have 28 pins that can be accessed. It is possible to sort parts based on their consumer IC type using CONSUMER CIRCUIT. It should not be possible to power this part with a voltage lower than 3.135V (Vsup). Voltage can be generated at 3.33.3/5V volts with this device. A maximum supply voltage (Vsup) is reached at 3.456V. In this case, Surface Mount mounts it. 3.3V is the supply voltage for the chip. 43mA is its supply current. A chip with 24 bits has a total of 24 bits.
AD1895AYRSZ Features
With 28-SSOP (0.209, 5.30mm Width) channels
operate temperature at the range of -40°C~105°C TA
consumer IC type: CONSUMER CIRCUIT
operate supply current at 43mA
with 24 bits

AD1895AYRSZ Applications
There are a lot of Analog Devices Inc.
AD1895AYRSZ Audio Special Purpose applications.

AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles

Lifecycle Status	PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time	8 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Number of Pins	28
Operating Temperature	-40°C~105°C TA
Packaging	Tube
JESD-609 Code	e3
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	EAR99
Applications	Digital Audio Interfacing
Voltage - Supply	3.3V 5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.65mm
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	AD1895
Function	Sample Rate Converter
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.456V
Power Supplies	3.33.3/5V
Supply Voltage-Min (Vsup)	3.135V
Number of Channels	2
Interface	I2S, TDM
Operating Supply Current	43mA
Nominal Supply Current	43mA
Power Dissipation	132mW
Number of Bits	24
Resolution	3 B
Specifications	6kHz ~ 215kHz
Conversion Rate	192 ksps
Consumer IC Type	CONSUMER CIRCUIT
Height	1.75mm
Length	10.2mm
Width	5.3mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead
Mfr	Analog Devices Inc.
Series	-
Product Status	Active
Interface	I²S, TDM
Voltage - Supply	3.3V, 5V
Operating Temperature	-40°C ~ 105°C (TA)
Package / Case	28-SSOP (0.209", 5.30mm Width)
Supplier Device Package	28-SSOP
