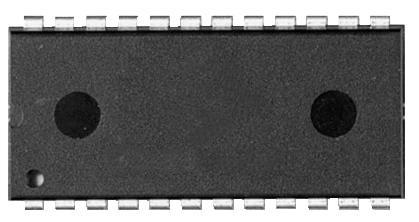

CD74HCT4515E OverviewMinimum supply voltage should be greater than 4.5 V.The maximum supply voltage (Vsup) of the encoder motor is reached at 5.5 V.This rotary encoder can also be used to find ADDRESS LATCHES.
CD74HCT4515E FeaturesCD74HCT4515E ApplicationsThere are a lot of Renesas Electronics America
CD74HCT4515E Encoders, Decoders, Converters applications.
CCD digital camera supply
Door and Gate Openers
Remote Device Control
Car Alarms
Car Starters
Home Automation
Industrial Automation
Remote Status Monitoring
Lighting Control
Low-voltage operation
| Surface Mount | NO |
| Number of Terminals | 24 |
| Package Shape | RECTANGULAR |
| JESD-609 Code | e4 |
| Pbfree Code | Yes |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Additional Feature | ADDRESS LATCHES |
| Terminal Position | DUAL |
| Terminal Form | THROUGH-HOLE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Number of Functions | 1 |
| Reach Compliance Code | unknown |
| JESD-30 Code | R-PDIP-T24 |
| Qualification Status | COMMERCIAL |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Temperature Grade | MILITARY |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Family | HCT |
| Output Polarity | INVERTED |
| Logic IC Type | OTHER DECODER/DRIVER |
| Propagation Delay (tpd) | 69 ns |
