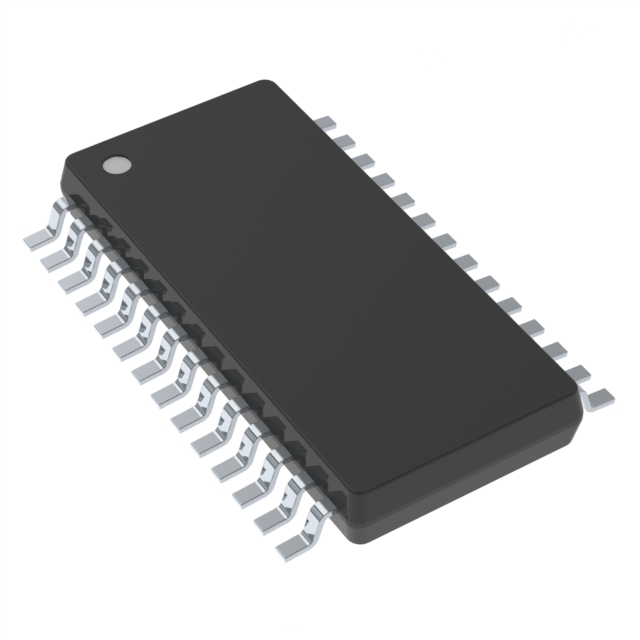

CS8416-CZZR Overview
It comes in a case with Tape & Reel (TR). It recommended mounting type is Surface Mount. It is embedded in 28-TSSOP (0.173, 4.40mm Width) case. The device is with 8 channels. This part includes Audio Receiver functions for your reference. The device can be applied in Digital Audio Interfacing. It is supplied votage within 3.3V~5V. This device operates temperature at the range of -10°C~70°C TA. The number of terminations on the chip is 28. Similar parts can be found by searching for the CS8416 family. Please refer to the related specifications of the device : 32kHz ~ 192kHz. There are 28 pins accessible on the chip. CONSUMER CIRCUIT can be used to sort the part's consumer IC type. It can give voltage at 3.33.3/5V volts. The maximal supply voltage (Vsup) reaches 3.46V.
CS8416-CZZR Features
With 28-TSSOP (0.173, 4.40mm Width) channels
operate temperature at the range of -10°C~70°C TA
consumer IC type: CONSUMER CIRCUIT

CS8416-CZZR Applications
There are a lot of Cirrus Logic Inc.
CS8416-CZZR Audio Special Purpose applications.

Mobile computing
Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703

Factory Lead Time	18 Weeks
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Number of Pins	28
Operating Temperature	-10°C~70°C TA
Packaging	Tape & Reel (TR)
Published	2001
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	28
Terminal Finish	MATTE TIN
Applications	Digital Audio Interfacing
Voltage - Supply	3.3V~5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.65mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	CS8416
Function	Audio Receiver
Supply Voltage-Max (Vsup)	3.46V
Power Supplies	3.33.3/5V
Number of Channels	8
Interface	I2C, SPI
Logic Function	Receiver
Specifications	32kHz ~ 192kHz
Min Dual Supply Voltage	3.13V
Consumer IC Type	CONSUMER CIRCUIT
Number of Receivers	1
Length	9.7mm
Width	4.4mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Mfr	Cirrus Logic Inc.
Series	-
Product Status	Obsolete
Interface	I²C, SPI
Voltage - Supply	3.3V ~ 5V
Operating Temperature	-10°C ~ 70°C (TA)
Package / Case	28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	28-TSSOP
