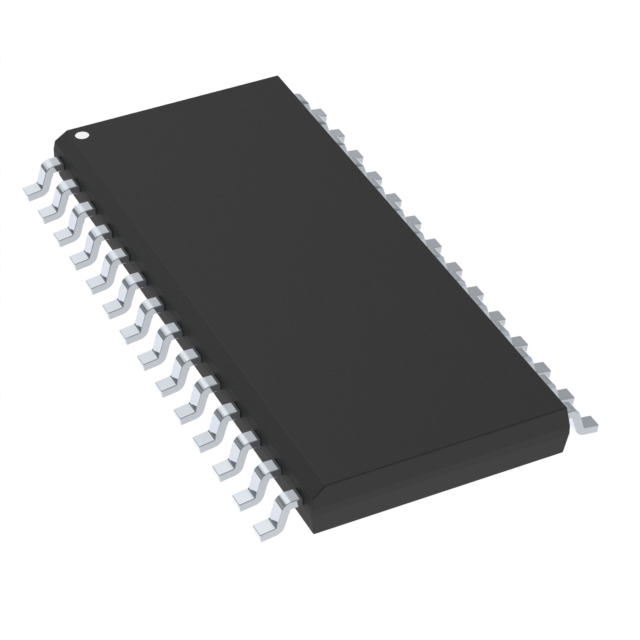

CS8416-DSZR Overview
With the book, you will also receive a case study. In terms of mounting type, the recommended type is Surface Mount. In this case, it is embedded in the 28-SOIC (0.295, 7.50mm Width) case. This device has a 8 channel configuration. To assist you, this part includes Audio Receiver functions. It is possible to apply the device in the Digital Audio Interfacing axis. Votage will be supplied within the period of 3.3V~5V. In terms of temperature, this device works within a range of -40°C~85°C TA. The chip has 28 terminations. If you search for the CS8416 family of parts, you will be able to find similar parts. I would like you to refer to the related specifications of the device: 32kHz ~ 192kHz. On the chip, there are 28 pins that can be accessed. Sorting by CONSUMER CIRCUIT can be done based on what type of consumer IC the part contains. It can produce voltage at a voltage level of 3.33.3/5V volts. In this case, Vsup reaches its maximal value at 3.46V.
CS8416-DSZR Features
With 28-SOIC (0.295, 7.50mm Width) channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: CONSUMER CIRCUIT

CS8416-DSZR Applications
There are a lot of Cirrus Logic Inc.
CS8416-DSZR Audio Special Purpose applications.

Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors

Factory Lead Time	17 Weeks
Mounting Type	Surface Mount
Package / Case	28-SOIC (0.295, 7.50mm Width)
Surface Mount	YES
Number of Pins	28
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2001
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	28
Terminal Finish	MATTE TIN
Applications	Digital Audio Interfacing
Voltage - Supply	3.3V~5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	CS8416
Function	Audio Receiver
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.46V
Power Supplies	3.33.3/5V
Number of Channels	8
Interface	I2C, SPI
Logic Function	Receiver
Specifications	32kHz ~ 192kHz
Min Dual Supply Voltage	3.13V
Consumer IC Type	CONSUMER CIRCUIT
Number of Receivers	1
Height Seated (Max)	2.65mm
Width	7.5mm
RoHS Status	RoHS Compliant
Mfr	Cirrus Logic Inc.
Series	-
Product Status	Not For New Designs
Interface	I²C, SPI
Voltage - Supply	3.3V ~ 5V
Operating Temperature	-40°C ~ 85°C (TA)
Package / Case	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package	28-SOIC
