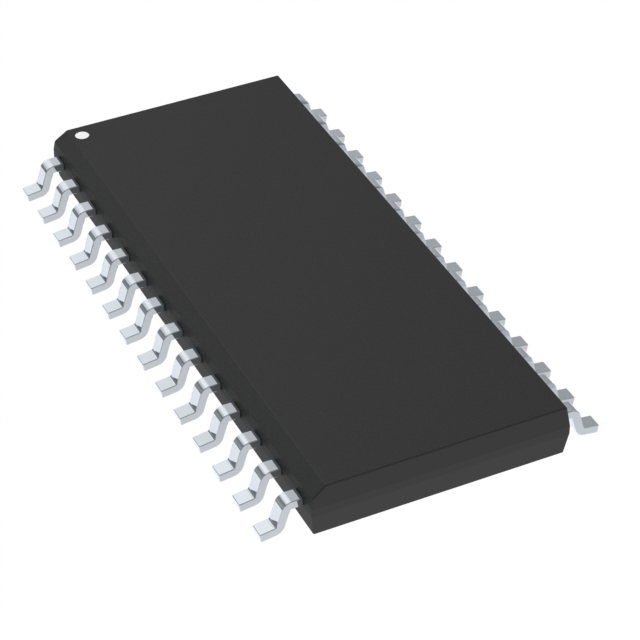

CS8416-DSZ Overview
Additionally, there is a case included with the book as well. The mounting type recommended by the manufacturer is Surface Mount. The 28-SOIC (0.295, 7.50mm Width) case was embedded with it. A 8 channel is present on the device. For your reference, this part contains Audio Receiver functions. Digital Audio Interfacing can be used with the device. We supply it within 3.3V~5V. Using -40°C~85°C TA as a temperature range, this device operates. It has 28 terminations. A search for parts belonging to the CS8416 family will yield similar results. Refer to the device's specifications: 32kHz ~ 192kHz. An accessible 28 pin can be found on the chip. You can use CONSUMER CIRCUIT to sort consumer ICs on a part. A voltage of 3.33.3/5V volts can be given by it. Vsup reaches its maximum (3.46V). At a frequency of 192GHz, it can operate efficiently.
CS8416-DSZ Features
With 28-SOIC (0.295, 7.50mm Width) channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: CONSUMER CIRCUIT

CS8416-DSZ Applications
There are a lot of Cirrus Logic Inc.
CS8416-DSZ Audio Special Purpose applications.

Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers

Mounting Type	Surface Mount
Package / Case	28-SOIC (0.295, 7.50mm Width)
Surface Mount	YES
Number of Pins	28
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Published	2001
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	28
Terminal Finish	MATTE TIN
Applications	Digital Audio Interfacing
Voltage - Supply	3.3V~5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Frequency	192GHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	CS8416
Function	Audio Receiver
Supply Voltage-Max (Vsup)	3.46V
Power Supplies	3.33.3/5V
Number of Channels	8
Interface	I2C, SPI
Logic Function	Receiver
Specifications	32kHz ~ 192kHz
Min Dual Supply Voltage	3.13V
Consumer IC Type	CONSUMER CIRCUIT
Number of Receivers	1
Height Seated (Max)	2.65mm
Width	7.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Mfr	Cirrus Logic Inc.
Series	-
Product Status	Not For New Designs
Interface	I²C, SPI
Voltage - Supply	3.3V ~ 5V
Operating Temperature	-40°C ~ 85°C (TA)
Package / Case	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package	28-SOIC
