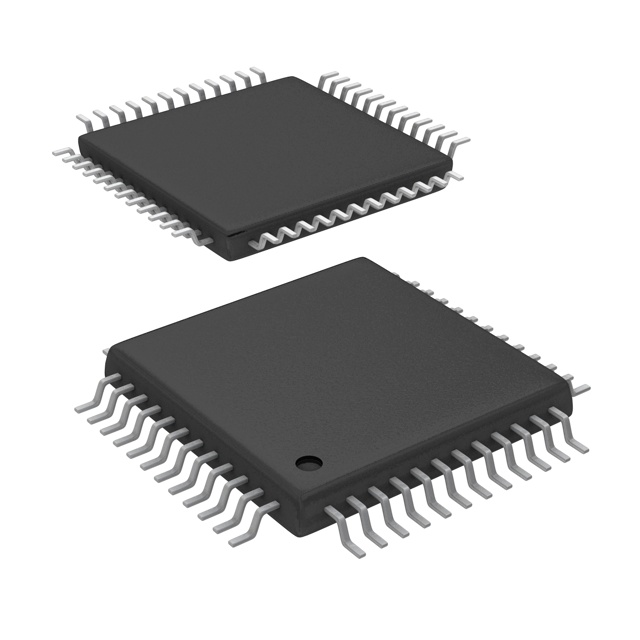

DIX4192IPFB Overview
With the book, you will also receive a case study. In terms of mounting type, the recommended type is Surface Mount. In this case, it is embedded in the 48-TQFP case. This device has a 4 channel configuration. To assist you, this part includes Audio Transceiver functions. It is possible to apply the device in the Automotive Audio, Professional Audio axis. Votage will be supplied within the period of 1.65V~1.95V. In terms of temperature, this device works within a range of -40°C~85°C TA. If you search for the DIX4192 family of parts, you will be able to find similar parts. I would like you to refer to the related specifications of the device: Differential Output. On the chip, there are 48 pins that can be accessed. When the chip is connected to a 3.3V-voltage supply, it conducts. A supply voltage of 1.8V can be applied to it.
DIX4192IPFB Features
With 48-TQFP channels
operate temperature at the range of -40°C~85°C TA
Supply voltage at 1.8V volts

DIX4192IPFB Applications
There are a lot of Texas Instruments
DIX4192IPFB Audio Special Purpose applications.

Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors

Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	48-TQFP
Surface Mount	YES
Number of Pins	48
Weight	137.410139mg
Operating Temperature	-40°C~85°C TA
Packaging	Tray
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Automotive Audio, Professional Audio
Voltage - Supply	1.65V~1.95V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	1.8V
Terminal Pitch	0.5mm
Base Part Number	DIX4192
Function	Audio Transceiver
Operating Supply Voltage	3.3V
Number of Channels	4
Interface	I2C, SPI
Nominal Supply Current	15mA
Logic Function	Transceiver
Output Characteristics	3-STATE
Differential Output	YES
Output Polarity	TRUE
Specifications	Differential Output
Input Characteristics	STANDARD
Driver Number of Bits	1
Receiver Number of Bits	4
Supply Voltage1-Nom	3.3V
High Level Input Current-Max	0.000025A
Number of Transmitters	1
Height	1.2mm
Length	7mm
Width	7mm
Thickness	1mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Interface	I²C, SPI
Voltage - Supply	1.65V ~ 1.95V
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	48-TQFP (7x7)
