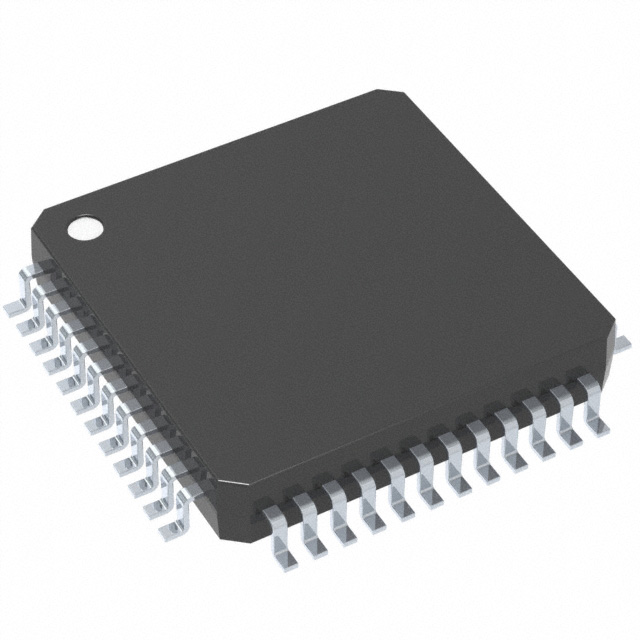

DIX9211PT Overview
It comes in a case with Tray. It recommended mounting type is Surface Mount. It is embedded in 48-LQFP case. The device is with 2 channels. This part includes Audio Transceiver functions for your reference. The device can be applied in Consumer Audio, Musical Instruments. It is supplied votage within 2.9V~3.6V. This device operates temperature at the range of -40°C~85°C TA. The number of terminations on the chip is 48. Similar parts can be found by searching for the DIX9211 family. Please refer to the related specifications of the device : 7kHz ~ 216kHz. There are 48 pins accessible on the chip. The chip conducts in a supply voltage of 3.3V. It can handle a supply voltage of 3.3V. Its supply current is operated under 38mA. It operates with a supply current of 26mA.
DIX9211PT Features
With 48-LQFP channels
operate temperature at the range of -40°C~85°C TA
Supply voltage at 3.3V volts
operate supply current at 26mA

DIX9211PT Applications
There are a lot of Texas Instruments
DIX9211PT Audio Special Purpose applications.

Mobile computing
Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703

Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	48-LQFP
Surface Mount	YES
Number of Pins	48
Operating Temperature	-40°C~85°C TA
Packaging	Tray
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	48
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Consumer Audio, Musical Instruments
Voltage - Supply	2.9V~3.6V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	DIX9211
Function	Audio Transceiver
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Number of Channels	2
Interface	I2C, I2S, SPI
Operating Supply Current	26mA
Supply Current-Max	38mA
Logic Function	Transceiver
Differential Output	NO
Sampling Rate	216 ksps
Specifications	7kHz ~ 216kHz
Input Characteristics	SCHMITT TRIGGER
Driver Number of Bits	1
Receiver Number of Bits	1
Supply Voltage1-Nom	3.3V
Height	1.6mm
Length	7mm
Width	7mm
Thickness	1.4mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Interface	I²C, I²S, SPI
Voltage - Supply	2.9V ~ 3.6V
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	48-LQFP (7x7)
