| Manufacturer | onsemi |
| Product Category | AC DC Converters, Offline Switchers |
| Series | - |
| Type | Non-Isolated High-Voltage Buck Switch |
| Packaging | Tube |
| Unit-Weight | 0.030018 oz |
| Mounting-Style | Through Hole |
| Operating-Temperature-Range | - 40 C to + 125 C |

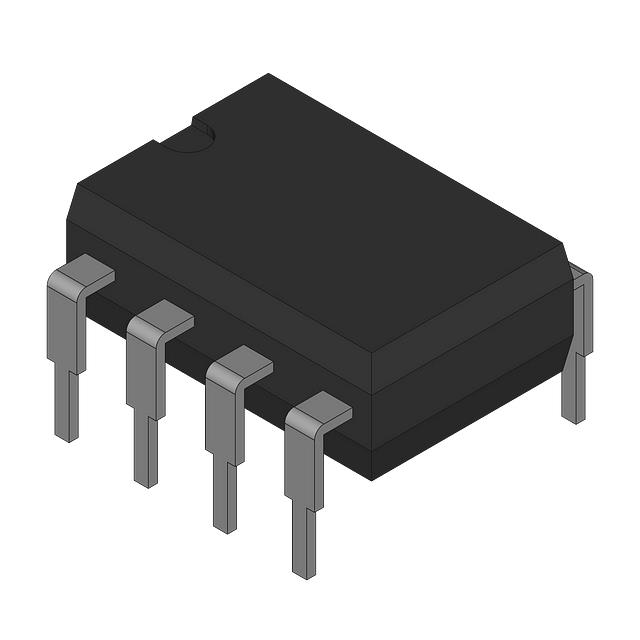

| Package-Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Through Hole |
| Supplier-Device-Package | 7-DIP |
| Watt | 2.4W |
| Number-of-Outputs | 2 Output |
| Output-Isolation | Non-Isolated |
| Internal-Switch-s | Yes |
| Voltage-Breakdown | 650V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage-Start-Up | 8V |
| Voltage-Supply-Vcc-Vdd | 7 V ~ 26 V |
| Duty-Cycle | - |
| Frequency-Switching | 50kHz |
| Fault-Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control-Features | - |
| Isolation | Non-Isolated |
| Output-Power | 2.4 W |
| Maximum Operating Temperature | + 125 C |
| Output-Voltage | 35 V |
| Operating-Supply-Current | 250 uA |
| Output-Current | 12 uA |
| Switching-Frequency | 50 kHz |
| Package-Case | DIP-7 |
| Duty-Cycle-Max | 77 % |
| Input-Supply-Voltage-Min | 7.2 V |
| Input-Supply-Voltage-Max | 8.8 V |
FSL3276ALRN Datasheet
