| Manufacturer | Power Integrations |
| Product Category | AC DC Converters, Offline Switchers |
| Series | LinkZero™-AX |
| Type | Off Line Switcher |
| Packaging | Tube Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Tradename | LinkSwitch |
| Operating-Temperature-Range | - 40 C to + 150 C |

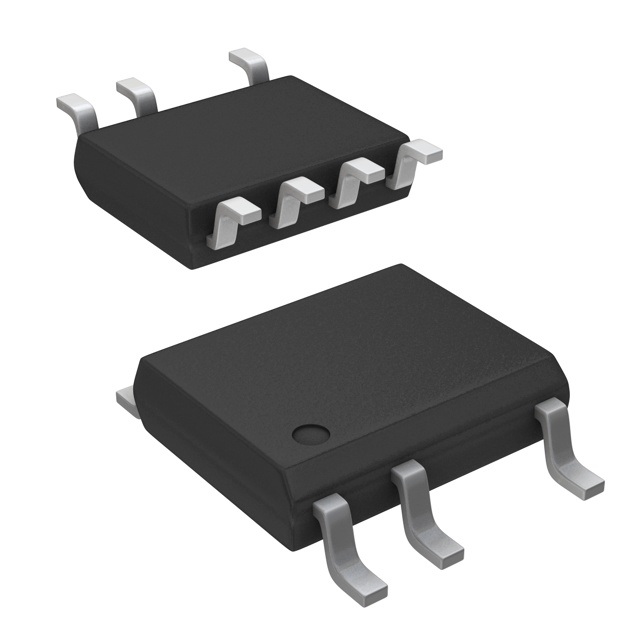

| Package-Case | 8-SOIC (0.154", 3.90mm Width) 7 leads |
| Operating-Temperature | -40°C ~ 150°C (TJ) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | SO-8C |
| Watt | 4.5W |
| Number-of-Outputs | 1 Output |
| Output-Isolation | Either |
| Internal-Switch-s | Yes |
| Voltage-Breakdown | 700V |
| Topology | Flyback |
| Voltage-Start-Up | - |
| Voltage-Supply-Vcc-Vdd | - |
| Duty-Cycle | 63% |
| Frequency-Switching | 100kHz |
| Fault-Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Control-Features | - |
| Output-Power | 4.5 W |
| Output-Voltage | 5 V |
| Operating-Supply-Current | 275 uA |
| Switching-Frequency | 100 kHz |
| Package-Case | SO-8C |
| Duty-Cycle-Max | 63 % |
| Input-Supply-Voltage-Min | 85 VAC |
| Input-Supply-Voltage-Max | 265 VAC |
