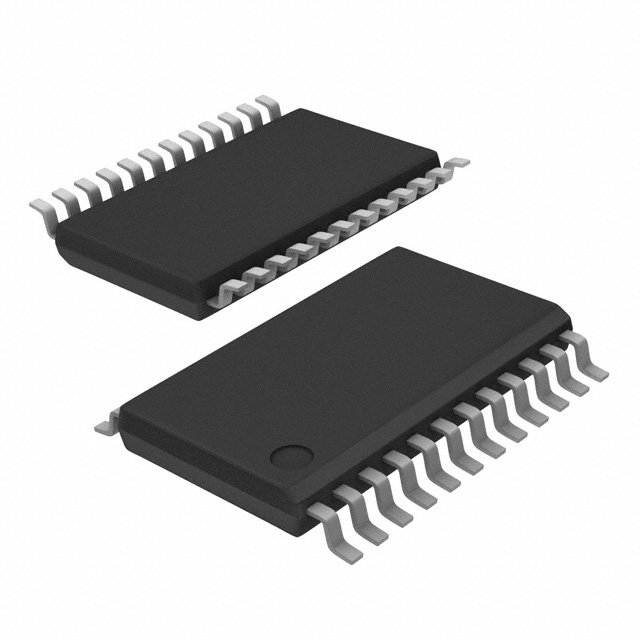

GTLP16616MTDX Overview
It is embedded in the 56-TFSOP (0.240, 6.10mm Width) package. It is packaged in the way of Tape & Reel (TR). 17-Bit circuits are used to achieve its superior flexibility. The Logic type of this electrical device is Universal Bus Transceiver. This electronic part is mounted in the way of Surface Mount. The operating temperature should be higher than -40°C~85°C. The High/Low output current of 32mA 32mA makes it feature maximum design flexibility. It operates with a supply voltage of 3.15V~3.45V. It belongs to 74GTLP16616 family. There are 56 terminations, which are the practice of ending a transmission line with a device that matches the characteristic impedance of the line. The supply voltage should be kept above 3.3V for normal operation. This electronic part is designed with 17 Bits. There are 2 terminations, which are the practice of ending a transmission line with a device that matches the characteristic impedance of the line. This electronic part is mounted in the way of Surface Mount. It is designed with 56 pins. The maximal supply voltage (Vsup) reaches 3.45V. It consists of 1 elements. The number of channels is growing strong/weak: 17. It consumes 30mA of quiescent current without being affected by external factors.
GTLP16616MTDX Features
56-TFSOP (0.240, 6.10mm Width) package
74GTLP16616 family
56 pins
1 elements

GTLP16616MTDX Applications
There are a lot of ON Semiconductor
GTLP16616MTDX Universal Bus Functions applications.

Electronic Points of Sale
Test and Measurement
Wearable Health and Fitness Devices
Tablets
Industrial Controls
Telecommunications
Instrumentation Systems
Air conditioner
Home theater
Electric grinding wheel

Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	56-TFSOP (0.240, 6.10mm Width)
Number of Pins	56
Weight	740mg
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	56
Voltage - Supply	3.15V~3.45V
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Base Part Number	74GTLP16616
Number of Elements	1
Polarity	Non-Inverting
Supply Voltage-Max (Vsup)	3.45V
Number of Channels	17
Number of Circuits	17-Bit
Number of Ports	2
Number of Bits	17
Propagation Delay	6.8 ns
Quiescent Current	30mA
Turn On Delay Time	10 ns
Logic Function	Transceiver, Translator
Direction	Bidirectional
Output Characteristics	OPEN-DRAIN/3-STATE
Current - Output High, Low	32mA 32mA
Logic Type	Universal Bus Transceiver
Radiation Hardening	No
RoHS Status	RoHS Compliant
Supplier Device Package	56-TSSOP
Package	Bulk
Base Product Number	GTLP16616
Mfr	Fairchild Semiconductor
Product Status	Obsolete
Operating Temperature	-40°C ~ 85°C
Series	-
Voltage - Supply	3.15V ~ 3.45V
Current - Output High, Low	32mA, 32mA
