HV230GA-G OverviewThis part should be mounted with the {0} mounting type.
HV230GA-G FeaturesHV230GA-G ApplicationsThere are a lot of Microchip Technology
HV230GA-G Special Purpose Analog Switches applications.
Linear measurement
Material handling
Metal forming & fabrication
Mobile equipement
Motor feedback
Packaging
Printing
Registration mark timing
Spooling or level wind
Stagecraft
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |

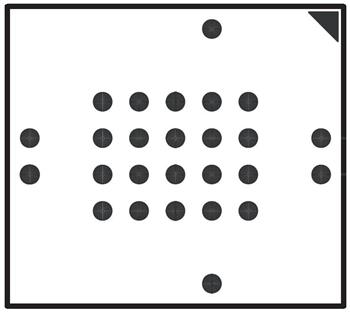

| Package / Case | 26-TFBGA |
| Surface Mount | YES |
| Number of Pins | 26 |
| Supplier Device Package | 26-FBGA (6x5.35) |
| Number of Terminals | 26 |
| Turn-On Delay Time | 5 µs |
| RoHS | Compliant |
| Product Status | Obsolete |
| Mfr | Microchip Technology |
| Base Product Number | HV230 |
| Package | Tray |
| Manufacturer | Microchip Technology Inc |
| Package Shape | RECTANGULAR |
| Operating Temperature | 0°C~70°C TA |
| Packaging | Tray |
| Published | 2013 |
| Series | -- |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 26 |
| Resistance | 25Ohm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Applications | Ultrasound |
| HTS Code | 8542.39.00.01 |
| Max Power Dissipation | 1W |
| Terminal Position | BOTTOM |
| Terminal Form | BALL |
| Number of Functions | 1 |
| Terminal Pitch | 0.65mm |
| Reach Compliance Code | unknown |
| Base Part Number | HV230 |
| JESD-30 Code | R-PBGA-B26 |
| Number of Outputs | 8 |
| Supply Voltage-Max (Vsup) | 13.2 V |
| Temperature Grade | COMMERCIAL |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Number of Channels | 1 |
| Max Supply Voltage | 13.2V |
| Min Supply Voltage | 4.5V |
| Analog IC - Other Type | SPST |
| Power Dissipation | 1W |
| Max Supply Current | 10μA |
| Turn On Delay Time | 5 μs |
| Number of Inputs | 8 |
| Voltage - Supply, Single/Dual (±) | 40V~200V ±40V~160V |
| Supply Type | Dual |
| Seated Height-Max | 1.2 mm |
| Turn-Off Delay Time | 5 μs |
| Max Dual Supply Voltage | 200V |
| -3db Bandwidth | 50MHz |
| On-State Resistance (Max) | 38Ohm |
| Min Dual Supply Voltage | 40V |
| Dual Supply Voltage | 100V |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Off-state Isolation-Nom | 30 dB |
| On-state Resistance Match-Nom | 20Ohm |
| Switch Circuit | SPST |
| Switch-on Time-Max | 5000ns |
| Switch-off Time-Max | 5000ns |
| Voltage - Supply, Single (V+) | 40 V ~ 200 V |
| Voltage - Supply, Dual (V±) | ±40 V ~ 160 V |
| Features | -- |
| Height | 800μm |
| Length | 6mm |
| Width | 5.35mm |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
HV230GA-G Datasheet
