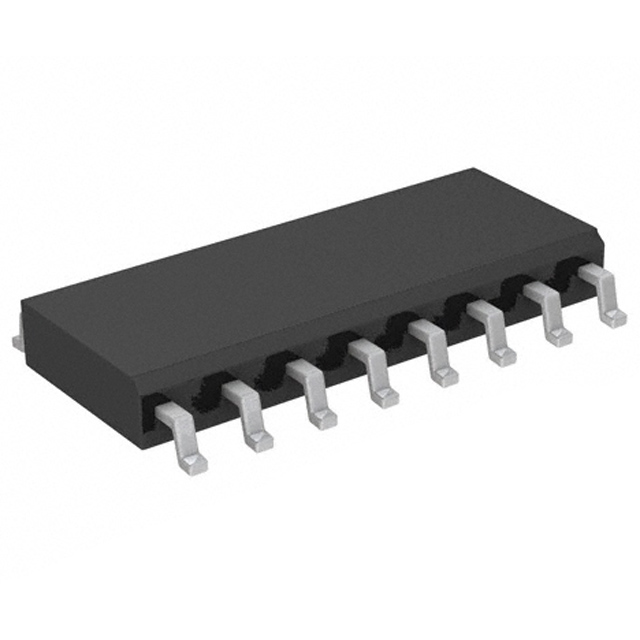

IRS20954STRPBF Overview
With the book, you will also receive a case study. In terms of mounting type, the recommended type is Surface Mount. In this case, it is embedded in the 16-SOIC (0.154, 3.90mm Width) case. To assist you, this part includes Line Driver functions. It is possible to apply the device in the Audio Systems axis. Votage will be supplied within the period of 10V~18V. In terms of temperature, this device works within a range of -40°C~125°C TA. The chip has 16 terminations. If you search for the IRS20954SPBF family of parts, you will be able to find similar parts. On the chip, there are 16 pins that can be accessed. Sorting by CONSUMER CIRCUIT can be done based on what type of consumer IC the part contains. Vsup (supply voltage) should not be less than 10V when using this part. In this case, Vsup reaches its maximal value at 18V. Surface Mount is the one who mounts it.
IRS20954STRPBF Features
With 16-SOIC (0.154, 3.90mm Width) channels
operate temperature at the range of -40°C~125°C TA
consumer IC type: CONSUMER CIRCUIT

IRS20954STRPBF Applications
There are a lot of Infineon Technologies
IRS20954STRPBF Audio Special Purpose applications.

Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors

Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154, 3.90mm Width)
Number of Pins	16
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Published	2011
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	TIN
Applications	Audio Systems
Max Power Dissipation	1W
Voltage - Supply	10V~18V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	IRS20954SPBF
Function	Line Driver
Number of Outputs	2
Supply Voltage-Max (Vsup)	18V
Supply Voltage-Min (Vsup)	10V
Interface	Analog
Fall Time (Typ)	10 ns
Consumer IC Type	CONSUMER CIRCUIT
Height	1.4986mm
Length	9.9568mm
Width	3.9878mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Mfr	Infineon Technologies
Series	-
Product Status	Obsolete
Number of Channels	2
Voltage - Supply	10V ~ 18V
Operating Temperature	-40°C ~ 125°C (TA)
Specifications	-
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
