MAX9890AEBL+T Overview
With the book, you will also receive a case study. In terms of mounting type, the recommended type is Surface Mount. In this case, it is embedded in the 9-WFBGA, CSPBGA case. This device has a 2 channel configuration. To assist you, this part includes Noise Reduction functions. It is possible to apply the device in the Consumer Audio axis. Votage will be supplied within the period of 2.7V~5.5V. In terms of temperature, this device works within a range of -40°C~85°C TA. The chip has 9 terminations. If you search for the MAX9890 family of parts, you will be able to find similar parts. I would like you to refer to the related specifications of the device: 36dB. Sorting by CONSUMER CIRCUIT can be done based on what type of consumer IC the part contains. It can produce voltage at a voltage level of 3/5V volts. In this case, Vsup reaches its maximal value at 5.5V.
MAX9890AEBL+T Features
With 9-WFBGA, CSPBGA channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: CONSUMER CIRCUIT

MAX9890AEBL+T Applications
There are a lot of Maxim Integrated
MAX9890AEBL+T Audio Special Purpose applications.

Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors

Factory Lead Time	8 Weeks
Mounting Type	Surface Mount

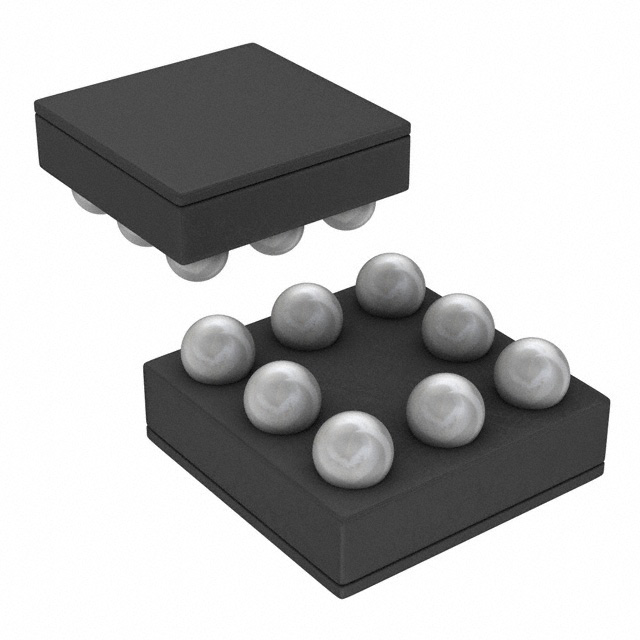

Package / Case	9-WFBGA, CSPBGA
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2012
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	9
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Consumer Audio
Voltage - Supply	2.7V~5.5V
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Base Part Number	MAX9890
JESD-30 Code	S-XBGA-B9
Function	Noise Reduction
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3/5V
Number of Channels	2
Interface	Analog
Quiescent Current	14μA
Specifications	36dB
Consumer IC Type	CONSUMER CIRCUIT
Height Seated (Max)	0.69mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
