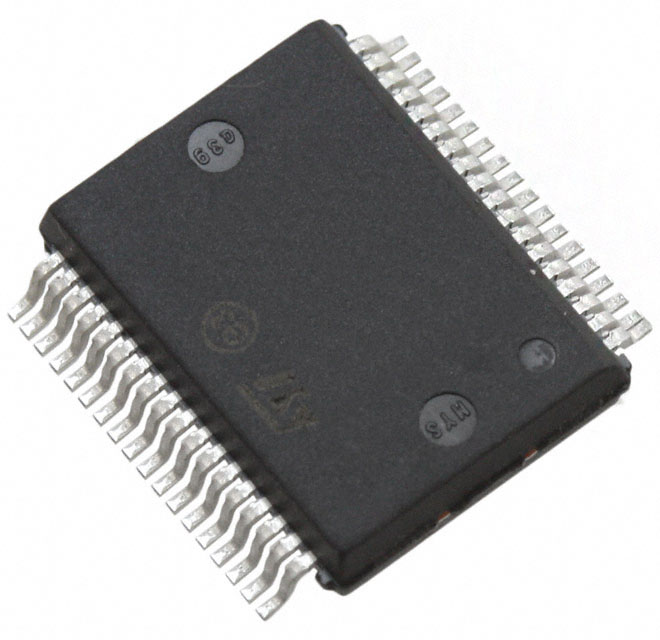

STA339BWS13TR Overview
With Tape & Reel (TR), it comes in a case. A Surface Mount mounting type is recommended for this product. In 36-BFSOP (0.295, 7.50mm Width) Exposed Pad case, it is embedded. With 2 channels, the device is equipped. You can refer to Fully Integrated Processor functions in this part. Pre-Amplifier is one of the possible applications of the device. Votage within 4.5V~21.5V is supplied. The device operates at a temperature in the range -20°C~70°C TA. On the chip, there are 36 terminations. Using the STA339 family as a search term will yield similar parts. The following specifications apply to the device: Full Flexible Amplification. On the chip, 36 pins are accessible. Consumer IC types can be sorted with CONSUMER CIRCUIT. This part should have a minimum supply voltage of 4.5V (Vsup). There is a voltage range of 3.318V volts that it can produce. The mount is mounted by Surface Mount. Sound Terminal™-series components are used in this electrical component. 48 dB should remain the voltage gain. When using this device, it is also possible to find ALSO REQUIRES 3.3V DIGITAL SUPPLY.
STA339BWS13TR Features
With 36-BFSOP (0.295, 7.50mm Width) Exposed Pad channels
operate temperature at the range of -20°C~70°C TA
consumer IC type: CONSUMER CIRCUIT

STA339BWS13TR Applications
There are a lot of STMicroelectronics
STA339BWS13TR Audio Special Purpose applications.

Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers

Lifecycle Status	ACTIVE (Last Updated: 6 months ago)
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	36-BFSOP (0.295, 7.50mm Width) Exposed Pad
Number of Pins	36
Operating Temperature	-20°C~70°C TA
Packaging	Tape & Reel (TR)
Series	Sound Terminal™
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	36
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Applications	Pre-Amplifier
Additional Feature	ALSO REQUIRES 3.3V DIGITAL SUPPLY
Voltage - Supply	4.5V~21.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Base Part Number	STA339
Function	Fully Integrated Processor
Power Supplies	3.318V
Supply Voltage-Min (Vsup)	4.5V
Number of Channels	2
Interface	I2C, I2S
Nominal Supply Current	15mA
Output Power	16W
Specifications	Full Flexible Amplification
Gain	48 dB
Consumer IC Type	CONSUMER CIRCUIT
Height	2.4mm
Length	10.5mm
Width	7.6mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	STMicroelectronics
Product Status	Active
Interface	I²C, I²S
Voltage - Supply	4.5V ~ 21.5V
Operating Temperature	-20°C ~ 70°C (TA)
Package / Case	36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device Package	PowerSSO-36 EPD
