MC145018P Overview
There is a package that contains materials from Tube.Sensor and detector interface is used to save space by using the 16-DIP (0.300, 7.62mm) package.The characteristics of Smoke Detector enable it to provide superior performance.Its mounting technique is Through Hole.Sensor and detector interface is recommended that the operating temperature be maintained at -10°C~60°C in order to avoid unnecessary cooling processes.The input type adopted by the program is Ionization.16 terminations prevent signals from reflecting off the transmission line's end.Using its base part number MC145018 you can locate related electronic parts.This device is configured with 1 functions.The voltage supply is 9V.An output type of Voltage is used.The current supply 12μA is permissible for use.The minimum supply voltage is maintained at 6V.12V is maintained as the maximum supply voltage.
MC145018P Features
With 9V channels
consumer IC type: 6V

MC145018P Applications
There are a lot of NXP USA Inc.
MC145018P applications of sensor and detector interfaces.

Vehicle Speed VRS Interfaces
Automatic Lighting (Residential and Commercial)
Automation of Doors
Motion Triggered Events (Animal photography)
Position sensor
Level transmitter
Proximity sensor
Wearable Fitness
Hearables
Wearable Medical

Mounting Type	Through Hole

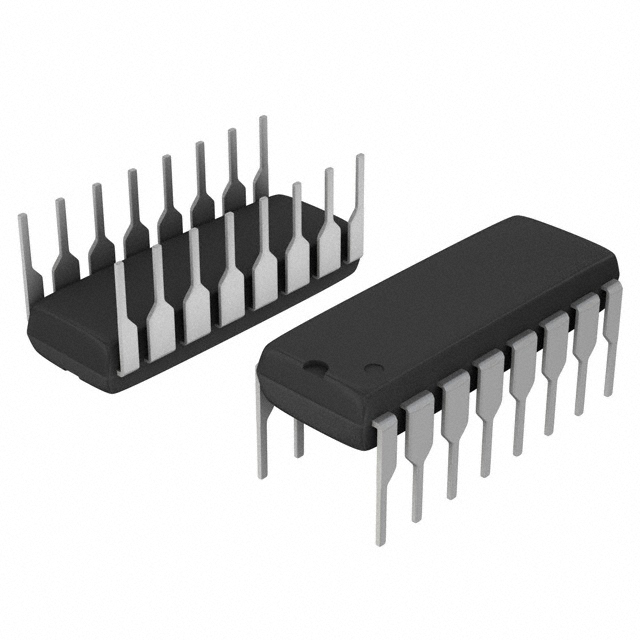

Package / Case	16-DIP (0.300, 7.62mm)
Surface Mount	NO
Operating Temperature	-10°C~60°C
Packaging	Tube
Published	2003
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
Type	Smoke Detector
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Position	DUAL
Number of Functions	1
Supply Voltage	9V
Terminal Pitch	2.54mm
Reach Compliance Code	not_compliant
Base Part Number	MC145018
JESD-30 Code	R-PDIP-T16
Output Type	Voltage
Supply Voltage-Max (Vsup)	12V
Supply Voltage-Min (Vsup)	6V
Input Type	Ionization
Current - Supply	12μA
Length	19.2mm
Height Seated (Max)	4.44mm
Width	7.62mm
RoHS Status	Non-RoHS Compliant
RoHS	Non-Compliant
