Operational Amplifiers include single, dual or quad amplifiers in space-saving packages. These devices operate down to 1.8 V and feature rail-to-rail inputs and outputs for improved system performance and low current consumption for extended battery life (600 nA for MCP604X and 614X families). These products offer low offset (VOS 150 μV), low bias current, high speed operation (10 MHz), high open-loop gain and other options for the embedded system designer.

Amplifier Type	General Purpose
Common Mode Rejection Ratio	91 dB
Density Noise	38 nV/vHz
Dimensions	0.195 X 0.00 in W X 0.78 in L
Dimensions	0.775 x 0.280 x 0.195 in
Gain Bandwidth	155 kHz
Height	0.195
Input Bias Current	80 pA
Input Offset Current	1 pA
Input Offset Voltage	250 μV
Input Voltage	2.2 to 2.8
Length	0.775 in
Maximum Operating Temperature	+85 °C
Mounting Type	Through Hole
Noise Voltage	38 nV/sqrt Hz
Number of Amplifiers	Quad
Number of Channels per Chip	4
Number of Circuits	4
Number of Pins	14
Output Current	17 mA
Package Type	PDIP

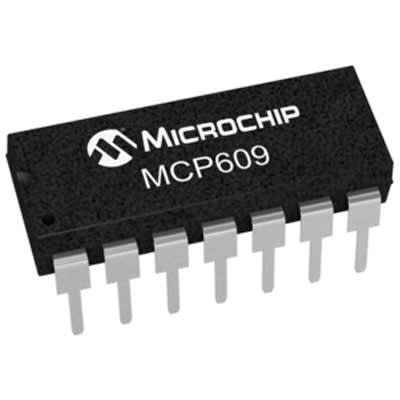

Product Header	Micropower CMOS Operational Amplifier
Supply Current	+/-30 mA
Temperature Operating Range	-40 to +85 °C
Type of Power Supply	Single Output
Typical Single Supply Voltage	2.5 to 6 V
Voltage, Input, High Level	4.4 V
Voltage, Input, Low Level	-0.3 V
Voltage, Output, High Level	2480 mV
Voltage, Output, Low Level	2480 mV
Width	0 in
