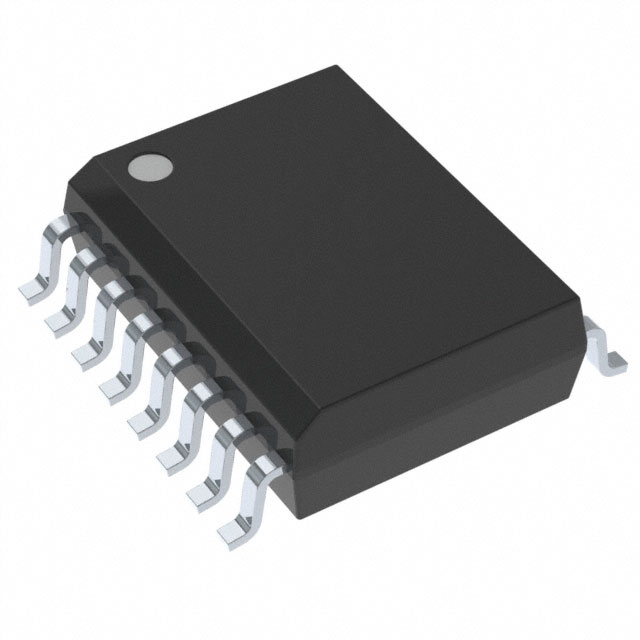

PGA2310UA/1K Overview
It comes in a case with Cut Tape (CT). It recommended mounting type is Surface Mount. It is embedded in 16-SOIC (0.295, 7.50mm Width) case. The device is with 2 channels. This part includes Volume Control functions for your reference. The device can be applied in Automotive Audio, Musical Instruments, Professional Audio. It is supplied votage within ±4.5V~15.5V. This device operates temperature at the range of -40°C~85°C TA. The number of terminations on the chip is 16. Similar parts can be found by searching for the PGA2310 family. Please refer to the related specifications of the device : 31.5dB ~ -95.5dB. There are 16 pins accessible on the chip. The minimum supply voltage (Vsup) for this part should not be less than 4.5V. It can give voltage at 5+-15V volts. There are 1 bands on it. The voltage gain should stay at -95.5 dB. IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY can also be founded when using this device.
PGA2310UA/1K Features
With 16-SOIC (0.295, 7.50mm Width) channels
operate temperature at the range of -40°C~85°C TA

PGA2310UA/1K Applications
There are a lot of Texas Instruments
PGA2310UA/1K Audio Special Purpose applications.

Mobile computing
Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703

Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Surface Mount	YES
Number of Pins	16
Weight	420.395078mg
Operating Temperature	-40°C~85°C TA
Packaging	Cut Tape (CT)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Automotive Audio, Musical Instruments, Professional Audio
Additional Feature	IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY
Voltage - Supply	±4.5V~15.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Base Part Number	PGA2310
Function	Volume Control
Power Supplies	5+-15V
Supply Voltage-Min (Vsup)	4.5V
Number of Channels	2
Interface	SPI
Nominal Supply Current	7.5mA
Quiescent Current	7.7mA
Input Offset Voltage (Vos)	500μV
Gain Bandwidth Product	1.5MHz
Specifications	31.5dB ~ -95.5dB
Gain	-95.5 dB
Dual Supply Voltage	15.5V
Number of Bands	1
Height	2.65mm
Length	10.3mm
Width	7.5mm
Thickness	2.35mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Voltage - Supply	±4.5V ~ 15.5V
Operating Temperature	-40°C ~ 85°C (TA)
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
