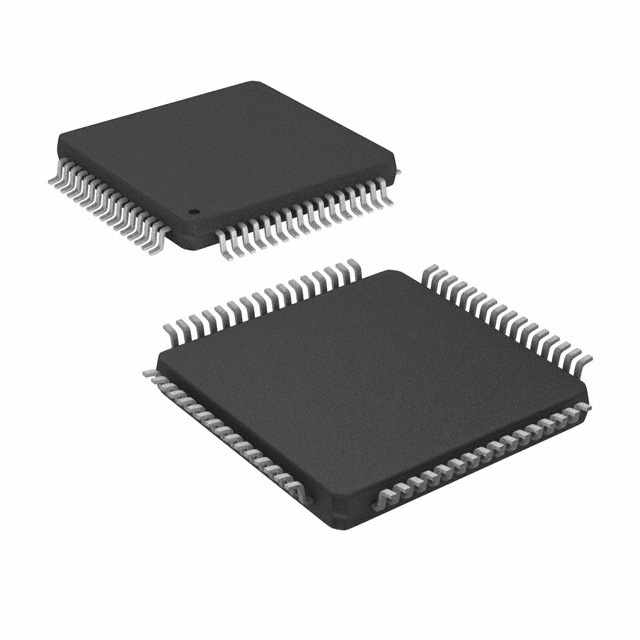

SRC4194IPAGR Overview
There is also an accompanying case included with this set. There is a recommendation that it should be mounted with a Surface Mount type mount. A 64-TQFP case has been embedded in it. This device has 4 channels. For your reference, here are some Sample Rate Converter functions. It can be used in Digital Audio Interfacing. There is a supply of votage within 1.8V 3.3V. -45°C~85°C TA is the temperature range for this device. A chip has 64 terminations. You can find similar parts by searching for the SRC4194 family. Refer to the following specifications for the device: 4kHz ~ 212kHz. Chips have 64 pins that can be accessed. It is possible to sort parts based on their consumer IC type using CONSUMER CIRCUIT. It should not be possible to power this part with a voltage lower than 1.65V (Vsup). Voltage can be generated at 1.8/3.33.3V volts with this device. A maximum supply voltage (Vsup) is reached at 2V. 3.6V is the supply voltage for the chip. With this device, IT ALSO REQUIRES 3V TO 3.6V SUPPLY can be founded as well.
SRC4194IPAGR Features
With 64-TQFP channels
operate temperature at the range of -45°C~85°C TA
consumer IC type: CONSUMER CIRCUIT

SRC4194IPAGR Applications
There are a lot of Texas Instruments
SRC4194IPAGR Audio Special Purpose applications.

AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles

Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	64-TQFP
Surface Mount	YES
Number of Pins	64
Weight	270.000858mg
Operating Temperature	-45°C~85°C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	4 (72 Hours)
Number of Terminations	64
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Digital Audio Interfacing
Additional Feature	IT ALSO REQUIRES 3V TO 3.6V SUPPLY
Voltage - Supply	1.8V 3.3V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Base Part Number	SRC4194
Function	Sample Rate Converter
Operating Supply Voltage	3.6V
Supply Voltage-Max (Vsup)	2V
Power Supplies	1.8/3.33.3V
Supply Voltage-Min (Vsup)	1.65V
Number of Channels	4
Interface	I2S, TDM
Output Power	320mW
Specifications	4kHz ~ 212kHz
Consumer IC Type	CONSUMER CIRCUIT
Height	1.2mm
Length	10mm
Width	10mm
Thickness	1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Interface	I²S, TDM
Voltage - Supply	1.8V, 3.3V
Operating Temperature	-45°C ~ 85°C (TA)
Supplier Device Package	64-TQFP (10x10)
