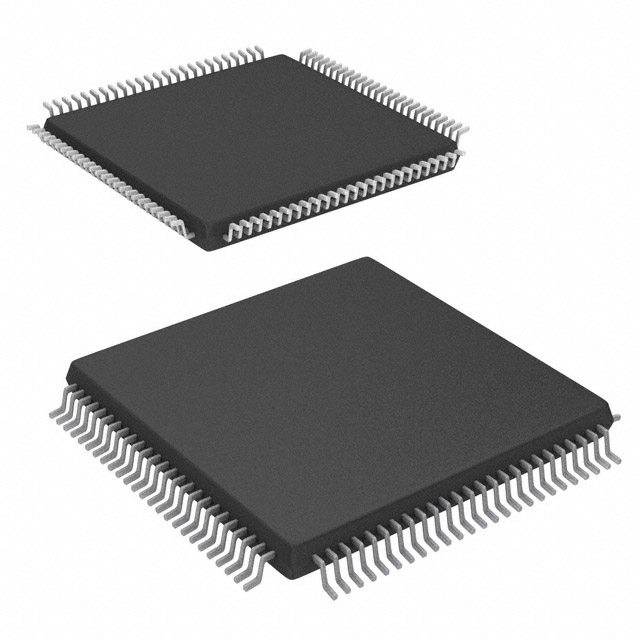

TAS3308PZTR Overview
This item comes with a case that goes with it. The mounting type that is recommended is Surface Mount. The embedded file is in the 100-TQFP case. The device has a 2 channel. Here is a list of Audio Signal Processor functions for your reference. There is the possibility of applying the device in Consumer Audio, Musical Instruments. There is a delivery within 3V~3.6V of the votage. In this device, temperature is measured in the 0°C~70°C TA range. On the chip, 100 terminations are present. If you search for the TAS3308 family, you will find similar parts. The chip contains 100 pins. Sorting by CONSUMER CIRCUIT can be done to find out the type of consumer IC in the part. It is recommended that the minimum supply voltage (Vsup) for this part be higher than 3V. At 3.3V volts, it can provide voltage. As you can see, Surface Mount has mounted it. When the chip's supply voltage is 3.6V, it conducts. In addition, it is capable of performing well when operating at the frequency of 135MHz.
TAS3308PZTR Features
With 100-TQFP channels
operate temperature at the range of 0°C~70°C TA
consumer IC type: CONSUMER CIRCUIT

TAS3308PZTR Applications
There are a lot of Texas Instruments
TAS3308PZTR Audio Special Purpose applications.

Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers

Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TQFP
Number of Pins	100
Operating Temperature	0°C~70°C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Consumer Audio, Musical Instruments
Voltage - Supply	3V~3.6V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Frequency	135MHz
Base Part Number	TAS3308
Function	Audio Signal Processor
Operating Supply Voltage	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Number of Channels	2
Interface	I2C
Consumer IC Type	CONSUMER CIRCUIT
Height	1.2mm
Length	14mm
Width	14mm
Thickness	1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Interface	I²C
Voltage - Supply	3V ~ 3.6V
Operating Temperature	0°C ~ 70°C (TA)
Specifications	-
Supplier Device Package	100-TQFP (14x14)
