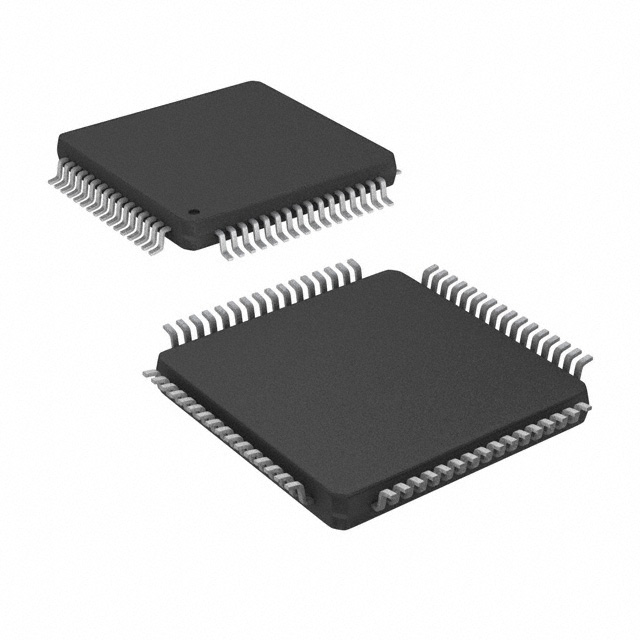

TAS5504PAG Overview
The product comes in a case with the letter Tray. The recommended mounting type for this product is Surface Mount. 64-TQFP case embeds it. It has 4 channels. Modulator functions are included in this part for your reference. Devices can be applied in Digital Audio Interfacing directions. Votage is provided within 3V~3.6V. A temperature range of 0°C~70°C TA is used by this device. 64 is the number of terminations on the chip. Search for the TAS5504 family to find similar parts. The device's related specifications can be found here: 32kHz ~ 192kHz. The chip has 64 pins. The consumer IC type of a part can be determined by CONSUMER CIRCUIT. This part requires a minimum supply voltage (Vsup) of 3V. Voltage at 3.3V volts is possible. In a supply voltage of 3.6V, the chip conducts.
TAS5504PAG Features
With 64-TQFP channels
operate temperature at the range of 0°C~70°C TA
consumer IC type: CONSUMER CIRCUIT

TAS5504PAG Applications
There are a lot of Texas Instruments
TAS5504PAG Audio Special Purpose applications.

Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver

Mounting Type	Surface Mount
Package / Case	64-TQFP
Surface Mount	YES
Number of Pins	64
Weight	270.000858mg
Operating Temperature	0°C~70°C TA
Packaging	Tray
JESD-609 Code	e4
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	4 (72 Hours)
Number of Terminations	64
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Digital Audio Interfacing
Voltage - Supply	3V~3.6V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TAS5504
Function	Modulator
Qualification Status	Not Qualified
Operating Supply Voltage	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Number of Channels	4
Interface	I2C, I2S
Nominal Supply Current	20mA
Output Power	1.869W
Specifications	32kHz ~ 192kHz
Consumer IC Type	CONSUMER CIRCUIT
Length	10mm
Height Seated (Max)	1.2mm
Width	10mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Not For New Designs
Interface	I²C, I²S
Voltage - Supply	3V ~ 3.6V
Operating Temperature	0°C ~ 70°C (TA)
Supplier Device Package	64-TQFP (10x10)
