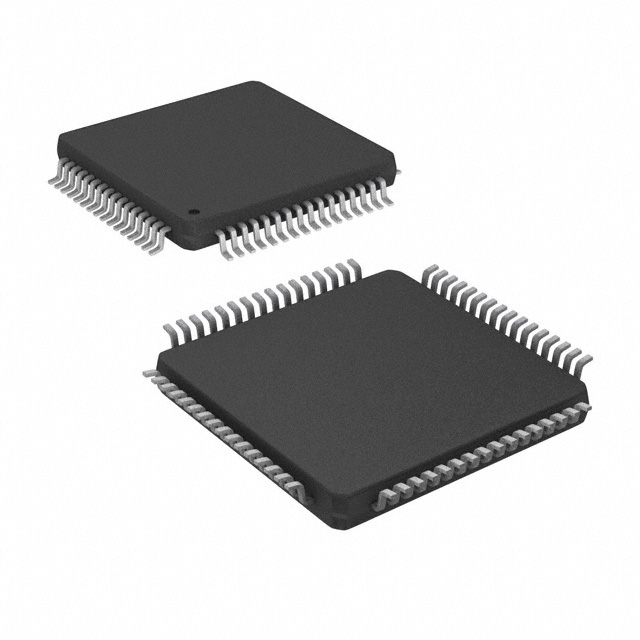

TAS5518PAGR Overview
With the book, you will also receive a case study. In terms of mounting type, the recommended type is Surface Mount. There is a 64-TQFP case embedded in it as well. This device has a 8 channel configuration. To assist you, this part includes Modulator functions. It is possible to apply the device in the Digital Audio Interfacing axis. Votage will be supplied within the period of 3V~3.6V. In terms of temperature, this device works within a range of -20°C~70°C TA. The chip has 64 terminations. If you search for the TAS5518 family of parts, you will be able to find similar parts. I would like you to refer to the related specifications of the device: 32kHz ~ 192kHz. On the chip, there are 64 pins that can be accessed. Sorting by CONSUMER CIRCUIT can be done based on what type of consumer IC the part contains. Vsup (supply voltage) should not be less than 3V when using this part. It can produce voltage at a voltage level of 3.3V volts. When the chip is connected to a 3.6V-voltage supply, it conducts.
TAS5518PAGR Features
With 64-TQFP channels
operate temperature at the range of -20°C~70°C TA
consumer IC type: CONSUMER CIRCUIT

TAS5518PAGR Applications
There are a lot of Texas Instruments
TAS5518PAGR Audio Special Purpose applications.

Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors

Mounting Type	Surface Mount
Package / Case	64-TQFP
Surface Mount	YES
Number of Pins	64
Weight	270.000858mg
Operating Temperature	-20°C~70°C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	4 (72 Hours)
Number of Terminations	64
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Digital Audio Interfacing
Voltage - Supply	3V~3.6V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TAS5518
Function	Modulator
Qualification Status	Not Qualified
Operating Supply Voltage	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Number of Channels	8
Interface	I2C, I2S
Output Power	1.869W
Specifications	32kHz ~ 192kHz
Consumer IC Type	CONSUMER CIRCUIT
Length	10mm
Height Seated (Max)	1.2mm
Width	10mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Not For New Designs
Interface	I²C, I²S
Voltage - Supply	3V ~ 3.6V
Operating Temperature	-20°C ~ 70°C (TA)
Supplier Device Package	64-TQFP (10x10)
