Operational Amplifiers include single, dual or quad amplifiers in space-saving packages. These devices operate down to 1.8 V and feature rail-to-rail inputs and outputs for improved system performance and low current consumption for extended battery life (600 nA for MCP604X and 614X families). These products offer low offset (VOS 150 μV), low bias current, high speed operation (10 MHz), high open-loop gain and other options for the embedded system designer.

Amplifier Type	Auto Zero
Bandwidth	1.5 dB
Common Mode Rejection Ratio	110 dB
Density Noise	0.65 μVp-p
Dimensions	0.16\” (4.06mm) X 0.00 in W X 0.40 in L
Dimensions	10.16 x 6.60 x 4.06 mm
Height	0.16" (4.06mm)
Input Bias Current	120 pA
Input Offset Current	40 pA
Input Offset Voltage	30 μV
Input Voltage	+/-8 to +/-8.6
Length	0.4 in
Maximum Operating Temperature	+70 °C
Minimum Operating Temperature	0 °C
Mounting Type	Through Hole
Noise Voltage	0.65 μVp-p
Number of Amplifiers	Dual
Number of Channels per Chip	2
Number of Pins	8
Output Type	Swing
Package Type	PDIP
Power Dissipation	730 W

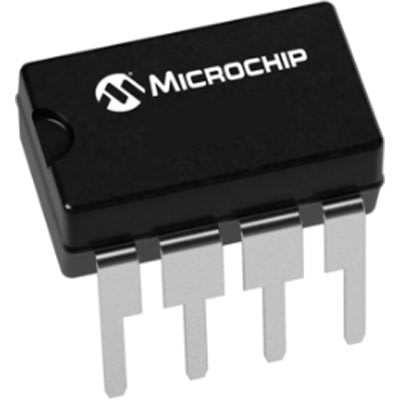

Product Header	Dual Auto-Zeroed Operational Amplifier
Slew Rate	2.5 V/μs
Supply Current	650 μA
Temperature Operating Range	0 to +70 °C
Type of Power Supply	Dual ; Single
Typical Dual Supply Voltage	+/-3.3 to +/-8.3 V
Typical Single Supply Voltage	6.5 to 16 V
Width	0 in
