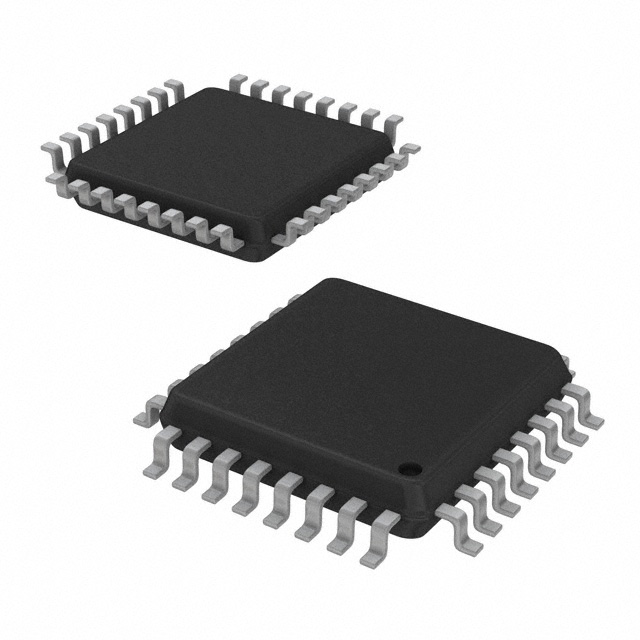

TDA7417 OverviewIt comes in a case with Tray. It recommended mounting type is Surface Mount. It is embedded in 32-TQFP case. The device is with 2 channels. This part includes Audio Signal Processor functions for your reference. The device can be applied in Automotive Audio. It is supplied votage within 8V~9V. This device operates temperature at the range of -40°C~85°C TA. The number of terminations on the chip is 32. Similar parts can be found by searching for the TDA7417 family. There are 32 pins accessible on the chip. EQUALIZER CIRCUIT can be used to sort the part's consumer IC type. The minimum supply voltage (Vsup) for this part should not be less than 8V. It can give voltage at 8.5V volts. The maximal supply voltage (Vsup) reaches 9V. It is mounted by Surface Mount. There are 7 bands on it.
TDA7417 FeaturesWith 32-TQFP channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: EQUALIZER CIRCUIT
TDA7417 ApplicationsThere are a lot of STMicroelectronics
TDA7417 Audio Special Purpose applications.
Mobile computing
Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
| Factory Lead Time | 16 Weeks |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 32-TQFP |
| Number of Pins | 32 |
| Operating Temperature | -40°C~85°C TA |
| Packaging | Tray |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 32 |
| ECCN Code | EAR99 |
| Applications | Automotive Audio |
| Voltage - Supply | 8V~9V |
| Terminal Position | QUAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.8mm |
| Base Part Number | TDA7417 |
| Function | Audio Signal Processor |
| Supply Voltage-Max (Vsup) | 9V |
| Power Supplies | 8.5V |
| Supply Voltage-Min (Vsup) | 8V |
| Number of Channels | 2 |
| Interface | I2C |
| Consumer IC Type | EQUALIZER CIRCUIT |
| Number of Bands | 7 |
| Harmonic Distortion | 0.01% |
| Channel Separation | 90 dB |
| Length | 7mm |
| Height Seated (Max) | 1.6mm |
| Width | 7mm |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Mfr | STMicroelectronics |
| Series | - |
| Product Status | Active |
| Applications | Audio |
| Interface | I²C |
| Voltage - Supply | 8V ~ 9V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Specifications | - |
| Grade | Automotive |
| Package / Case | 32-LQFP |
| Supplier Device Package | 32-TQFP (7x7) |
