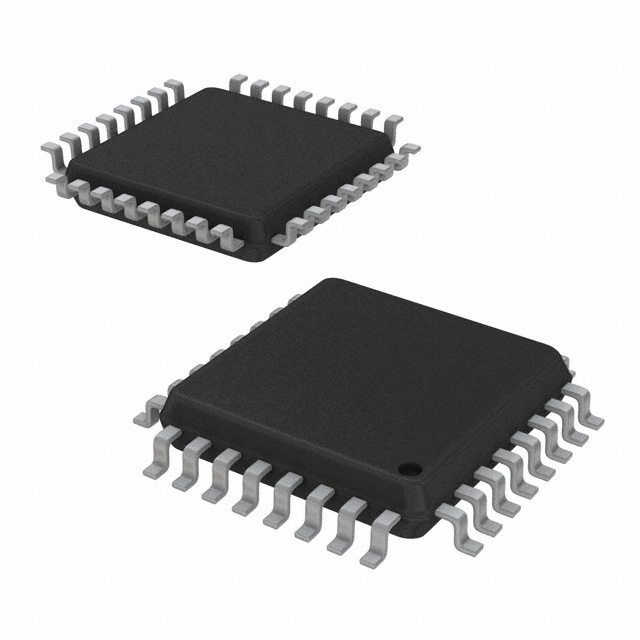

TDA7417TR OverviewThe product comes in a case with the letter Tape & Reel (TR). The recommended mounting type for this product is Surface Mount. 32-TQFP case embeds it. It has 2 channels. Audio Signal Processor functions are included in this part for your reference. Devices can be applied in Automotive Audio directions. Votage is provided within 8V~9V. A temperature range of -40°C~85°C TA is used by this device. 32 is the number of terminations on the chip. Search for the TDA7417 family to find similar parts. The chip has 32 pins. The consumer IC type of a part can be determined by EQUALIZER CIRCUIT. This part requires a minimum supply voltage (Vsup) of 8V. Voltage at 8.5V volts is possible. 9V is the maximum supply voltage (Vsup). Surface Mount mounts it. It has 7 bands.
TDA7417TR FeaturesWith 32-TQFP channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: EQUALIZER CIRCUIT
TDA7417TR ApplicationsThere are a lot of STMicroelectronics
TDA7417TR Audio Special Purpose applications.
Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
| Factory Lead Time | 16 Weeks |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 32-TQFP |
| Number of Pins | 32 |
| Operating Temperature | -40°C~85°C TA |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 32 |
| ECCN Code | EAR99 |
| Applications | Automotive Audio |
| Voltage - Supply | 8V~9V |
| Terminal Position | QUAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.8mm |
| Base Part Number | TDA7417 |
| Function | Audio Signal Processor |
| Supply Voltage-Max (Vsup) | 9V |
| Power Supplies | 8.5V |
| Supply Voltage-Min (Vsup) | 8V |
| Number of Channels | 2 |
| Interface | I2C |
| Consumer IC Type | EQUALIZER CIRCUIT |
| Number of Bands | 7 |
| Harmonic Distortion | 0.01% |
| Channel Separation | 90 dB |
| Length | 7mm |
| Height Seated (Max) | 1.6mm |
| Width | 7mm |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Mfr | STMicroelectronics |
| Series | - |
| Product Status | Active |
| Applications | Audio |
| Interface | I²C |
| Voltage - Supply | 8V ~ 9V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Specifications | - |
| Grade | Automotive |
| Package / Case | 32-LQFP |
| Supplier Device Package | 32-TQFP (7x7) |
