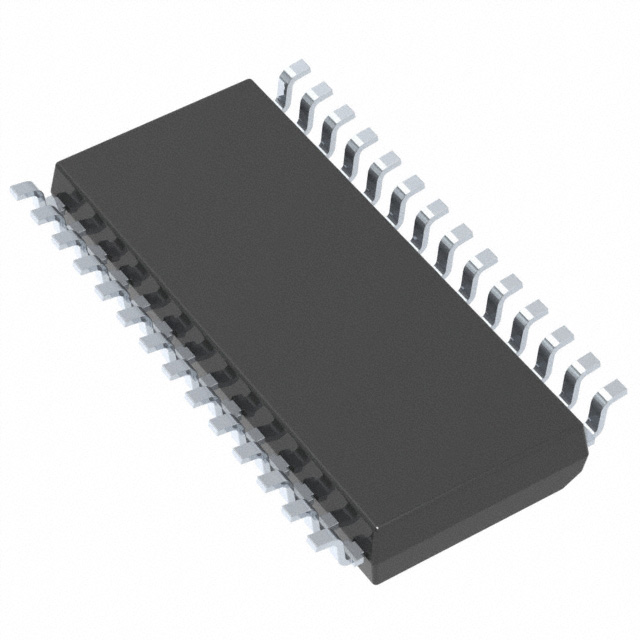

TDA7419TR Overview
Additionally, there is a case included with the book as well. The mounting type recommended by the manufacturer is Surface Mount. A 28-SOIC (0.295, 7.50mm Width) case contains it. A 4 channel is present on the device. For your reference, this part contains Audio Signal Processor functions. Automotive Audio can be used with the device. We supply it within 8V~10V. Using -40°C~85°C TA as a temperature range, this device operates. It has 28 terminations. A search for parts belonging to the TDA7419 family will yield similar results. An accessible 28 pin can be found on the chip. You can use TONE CONTROL CIRCUIT to sort consumer ICs on a part. In order to operate this part, the minimum supply voltage (Vsup) must not be less than 8V volts. A voltage of 8.5V volts can be given by it. Vsup reaches its maximum (10V). This electrical component belongs to the Automotive, AEC-Q100 series. 3 bands can be seen on it. There should be no change in the voltage gain.
TDA7419TR Features
With 28-SOIC (0.295, 7.50mm Width) channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: TONE CONTROL CIRCUIT

TDA7419TR Applications
There are a lot of STMicroelectronics
TDA7419TR Audio Special Purpose applications.

Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers

Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Factory Lead Time	13 Weeks
Mounting Type	Surface Mount
Package / Case	28-SOIC (0.295, 7.50mm Width)
Surface Mount	YES
Number of Pins	28
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	28
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Automotive Audio
Voltage - Supply	8V~10V
Terminal Position	DUAL
Terminal Form	GULL WING
Terminal Pitch	1.27mm
Base Part Number	TDA7419
Function	Audio Signal Processor
Supply Voltage-Max (Vsup)	10V
Power Supplies	8.5V
Supply Voltage-Min (Vsup)	8V
Number of Channels	4
Interface	I2C
Gain	15 dB
Consumer IC Type	TONE CONTROL CIRCUIT
Number of Bands	3
Channel Separation	90 dB
Length	17.9mm
Height Seated (Max)	2.65mm
Width	7.5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	STMicroelectronics
Series	-
Product Status	Last Time Buy
Applications	Audio
Interface	I²C
Voltage - Supply	8V ~ 10V
Operating Temperature	-40°C ~ 85°C (TA)
Specifications	-
Grade	Automotive
Qualification	AEC-Q100
Package / Case	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package	28-SO
