TDA7719 Overview

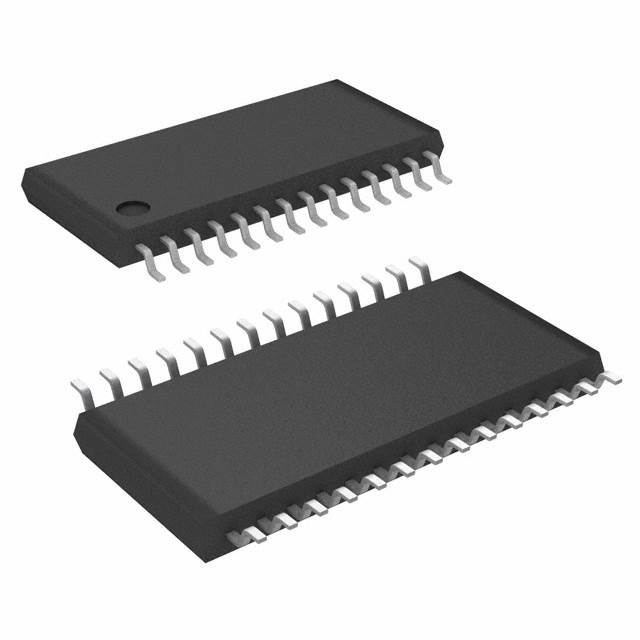

In addition, the book comes with a case study as well. It is recommended that you mount it in a Surface Mount mounting type. Case 28-TSSOP (0.173, 4.40mm Width) contains it. There are 3 channels on the device. The Audio Signal Processor functions in this part are included for your reference. There is a Automotive Audio version of the device. There is a supply of votage within 7.5V~10V days of ordering. With this device, you can operate the temperature within a range of -40°C~85°C TA. 28 terminations are present on the chip. By searching for TDA7719 family parts, similar parts can be found. 28 pins are available on the chip. To sort IC types, use TONE CONTROL CIRCUIT. There should be no voltage below 7.5V on the supply line of this component (Vsup). When Vsup reaches 10V, the maximum supply voltage (Vsup) is reached. As seen in the picture, Surface Mount is mounting it. Using this electrical component, we can represent the Automotive, AEC-Q100 series. The chip conducts when it is supplied with 8.5V-voltage. 3 bands are present on it.
TDA7719 Features
With 28-TSSOP (0.173, 4.40mm Width) channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: TONE CONTROL CIRCUIT

TDA7719 Applications
There are a lot of STMicroelectronics
TDA7719 Audio Special Purpose applications.

Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors

Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Factory Lead Time	13 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173, 4.40mm Width)
Number of Pins	28
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	Automotive, AEC-Q100
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	28
ECCN Code	EAR99
Applications	Automotive Audio
Voltage - Supply	7.5V~10V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Terminal Pitch	0.65mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TDA7719
Function	Audio Signal Processor
Qualification Status	Not Qualified
Operating Supply Voltage	8.5V
Supply Voltage-Max (Vsup)	10V
Supply Voltage-Min (Vsup)	7.5V
Number of Channels	3
Interface	I2C
Nominal Supply Current	35mA
Common Mode Rejection Ratio	46 dB
Consumer IC Type	TONE CONTROL CIRCUIT
Number of Bands	3
Channel Separation	90 dB
Length	9.7mm
Height Seated (Max)	1.2mm
Width	4.4mm
RoHS Status	ROHS3 Compliant
Mfr	STMicroelectronics
Product Status	Active
Interface	I²C
Voltage - Supply	7.5V ~ 10V
Operating Temperature	-40°C ~ 85°C (TA)
Specifications	-
Package / Case	28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	28-TSSOP
