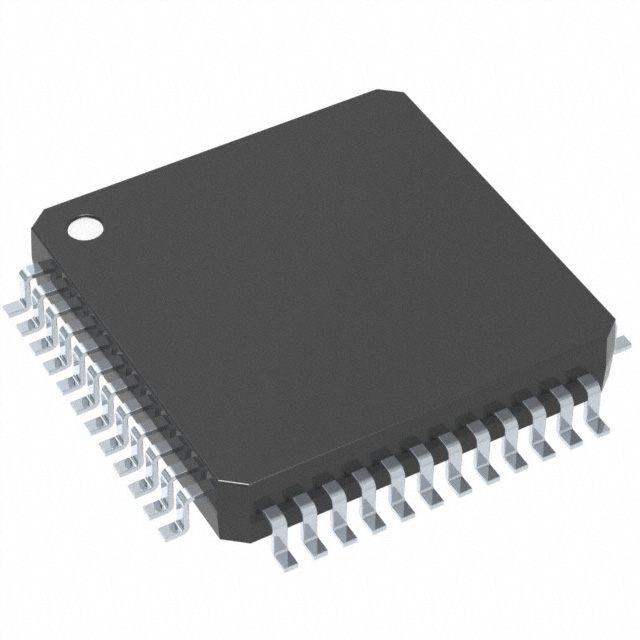

PCM9211PT Overview
This item comes with a case that goes with it. The mounting type that is recommended is Surface Mount. The embedded file is in the 48-LQFP case. Here is a list of Audio Transceiver functions for your reference. There is the possibility of applying the device in Consumer Audio, Musical Instruments. There is a delivery within 2.9V~3.6V of the votage. In this device, temperature is measured in the -40°C~85°C TA range. On the chip, 48 terminations are present. If you search for the PCM9211 family, you will find similar parts. Here are the device specifications: 7kHz ~ 216kHz. The chip contains 48 pins. When the chip's supply voltage is 5V, it conducts. There is a voltage range of 3.3V that it can handle. A 38mA-operated supply current is used. A supply current of 10mA is used to operate it. IC chips have 24 bits in total.
PCM9211PT Features
With 48-LQFP channels
operate temperature at the range of -40°C~85°C TA
Supply voltage at 3.3V volts
operate supply current at 10mA
with 24 bits

PCM9211PT Applications
There are a lot of Texas Instruments
PCM9211PT Audio Special Purpose applications.

Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers

Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	48-LQFP
Surface Mount	YES
Number of Pins	48
Weight	181.692094mg
Operating Temperature	-40°C~85°C TA
Packaging	Tube
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	48
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Consumer Audio, Musical Instruments
Max Power Dissipation	180mW
Voltage - Supply	2.9V~3.6V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Base Part Number	PCM9211
Function	Audio Transceiver
Operating Supply Voltage	5V
Interface	I2C, I2S, SPI
Operating Supply Current	10mA
Number of Bits	24
Supply Current-Max	38mA
Logic Function	Transceiver
Resolution	3 B
Sampling Rate	96 ksps
Specifications	7kHz ~ 216kHz
Number of A/D Converters	1
Number of Receivers	2
Height	1.6mm
Length	7mm
Width	7mm
Thickness	1.4mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Number of Channels	2
Interface	I²C, I²S, SPI
Voltage - Supply	2.9V ~ 3.6V
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	48-LQFP (7x7)
