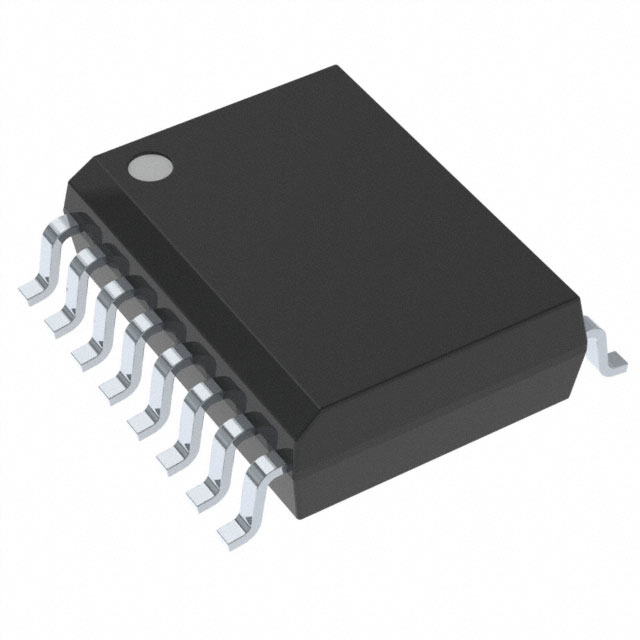

PGA2320IDWR Overview
With the book, you will also receive a case study. In terms of mounting type, the recommended type is Surface Mount. In this case, it is embedded in the 16-SOIC (0.295, 7.50mm Width) case. This device has a 2 channel configuration. To assist you, this part includes Volume Control functions. It is possible to apply the device in the Automotive Audio, Musical Instruments, Professional Audio axis. Votage will be supplied within the period of ±4.5V~15.5V. In terms of temperature, this device works within a range of -40°C~85°C TA. The chip has 16 terminations. If you search for the PGA2320 family of parts, you will be able to find similar parts. I would like you to refer to the related specifications of the device: 31.5dB ~ -95.5dB. On the chip, there are 16 pins that can be accessed. Vsup (supply voltage) should not be less than 4.5V when using this part. It can produce voltage at a voltage level of 5+-15V volts. In this case, Vsup reaches its maximal value at 15.5V. A IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY can be founded using this device as well.
PGA2320IDWR Features
With 16-SOIC (0.295, 7.50mm Width) channels
operate temperature at the range of -40°C~85°C TA

PGA2320IDWR Applications
There are a lot of Texas Instruments
PGA2320IDWR Audio Special Purpose applications.

Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors

Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Surface Mount	YES
Number of Pins	16
Weight	420.395078mg
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Automotive Audio, Musical Instruments, Professional Audio
Additional Feature	IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY
Voltage - Supply	±4.5V~15.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Base Part Number	PGA2320
Function	Volume Control
Supply Voltage-Max (Vsup)	15.5V
Power Supplies	5+-15V
Supply Voltage-Min (Vsup)	4.5V
Number of Channels	2
Interface	SPI
Specifications	31.5dB ~ -95.5dB
Height	2.65mm
Length	10.3mm
Width	7.5mm
Thickness	2.35mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Applications	Audio, Musical Instruments
Voltage - Supply	±4.5V ~ 15.5V
Operating Temperature	-40°C ~ 85°C (TA)
Grade	Automotive
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
